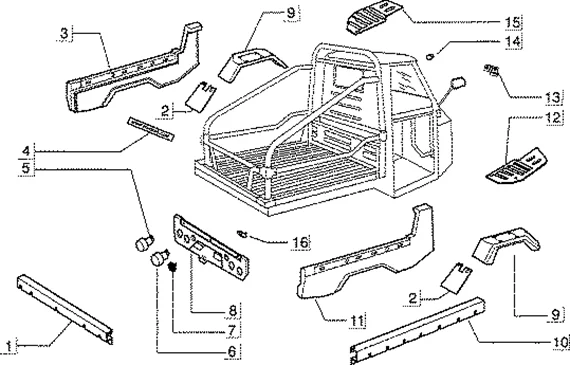

Châssis : T2 ÉLÉMENTS CONSTITUTIFS DU CHÂSSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/322/Ape_Web_50_2T_2001-2008_T2.PNG)
2 |
569526 - BAVETTE AR More informationQuantity required : 2 |
||||||
|
3 |
569438 - CARENAGE C80 WEB GAUCHE More informationQuantity required : 1 |
||||||
|
4 |
569546 - MONOGRAMME More informationQuantity required : 1 |
||||||
|
5 |
583164 - CLIGNOTEUR C80 WEB More informationQuantity required : 2 |
||||||
|
6 |
583165 - FEU ARRIERE C80 WEB More informationQuantity required : 2 |
||||||
|
7 |
583166 - CATADIOTTRO PO More informationQuantity required : 2 |
||||||
|
8 |
569439 - CARENAGE C80 WEB ARRIERE More informationQuantity required : 1 |
||||||
|
9 |
569435 - GARDE BOUE GAUCHE More informationQuantity required : 2 |
||||||
|
10 |
569411 - PROFILE C80-WEB More informationQuantity required : 2 |
||||||
|
11 |
569437 - CARENAGE C80 WEB DROITE More informationQuantity required : 1 |
||||||
|
12 |
5694635 - PLANCHER D TM 50 More informationQuantity required : 1 |
||||||
|
13 |
CAB PLATE "PIAGGIO GENUINE PART" PIAGGIO APE -569545- More informationQuantity required : 1 |
||||||
|
14 |
B007157 - PRISE ELECTRIQUE More informationQuantity required : 1 |
||||||
|
15 |
5694625 - PLANCHER More informationQuantity required : 1 |
