Vehicle Exploded View - APRILIA AF1 FUTURA 50 1991-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

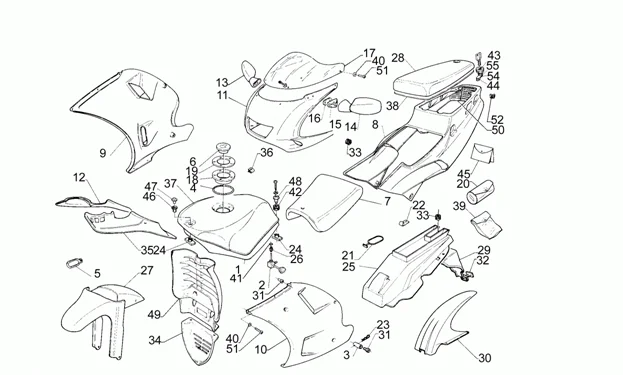

Chassis : 6 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/233/AF1_Futura_50_1991-1992_6.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/7/img/46627.jpg)
3 |
AP8120699 - TUBE FIX. LAT. CAREN. More informationQuantity required : 2 |
||||||
4 |
AP8120702 - JOINT ORIFICE REMPL. More informationQuantity required : 1 |
||||||
|
5 |
AP8120512 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
6 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
15 |
AP8102152 - SUPPORT RETROVISEUR More informationQuantity required : 2 |
||||||
|
18 |
AP8121784 - TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
|
19 |
AP8102361 - BAGUE BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.JPG)
21 |
AP8120177 - ELASTIQUE SUPPORT FEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
24 |
AP8120557 - CAOUTCHOUC RESERV. More informationQuantity required : 2 |
||||||
|
30 |
AP8226126 - GARDE-BOUE ARRIERE NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
31 |
NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531- More informationQuantity required : 20 |
||||||
|
32 |
AP8112560 - CATADIOPTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
33 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
36 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/4/8/6/img/164486.JPG)
40 |
AP8120591 - RONDELLE More informationQuantity required : 20 |
||||||
|
43 |
LOCK KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS -AP8104609- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/2/0/img/49120.jpg)
44 |
SADDLE LOCK FIXING PLATE "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>2005 -AP8135260- More informationQuantity required : 1 |
||||||
|
45 |
AP8201872 - KIT SERRURE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/6/img/72276.JPG)
46 |
RUBBER SPACER FOR EXHAUST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, FUTURA, RX, SX -AP8220241- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/0/img/71480.jpg)
47 |
AP8121673 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
48 |
AP8121673 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
51 |
AP8152268 - VIS More informationQuantity required : 25 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.JPG)
54 |
AP8221312 - RONDELLE EVENT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
55 |
AP8152194 - ECROU BAS More informationQuantity required : 1 |
