Vehicle Exploded View - APRILIA AF1 FUTURA 50 1991-1992
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

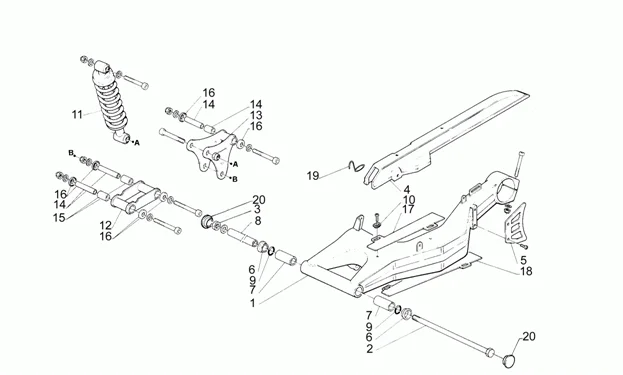

Chassis : 9 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/233/AF1_Futura_50_1991-1992_9.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/9/img/50939.jpg)
3 |
AP8152007 - ECROU BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/1/img/56841.jpg)
6 |
AP8220196 - DOUILLE More informationQuantity required : 2 |
||||||
7 |
AP8220197 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/1/img/56991.jpg)
8 |
AP8221024 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/3/img/56843.jpg)
9 |
AP8220198 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.JPG)
10 |
AP8234020 - RONDELLE POUR PATIN; More informationQuantity required : 2 |
||||||
|
11 |
AP8203363 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
|
12 |
AP8232518 - BIELLE SIMPLE; More informationQuantity required : 1 |
||||||
|
19 |
AP8201417 - GUIDE CABLE TUYAU FREIN More informationQuantity required : 1 |
