Eclatés de véhicule - VESPA VESPA LX 50 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

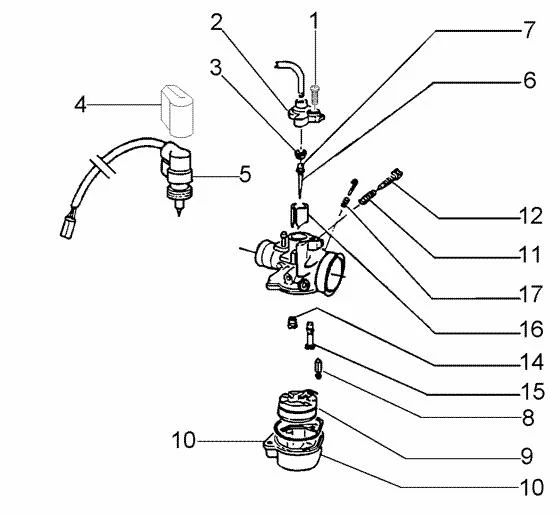

Moteur : T15 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/705/Vespa_LX_50_2T_1998-2005_T15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/2/img/66202.jpg)
1 |
VIS TFR (5X14) ORIGINE PIAGGIO COMMUN A LA GAMME -288865- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/5/img/66415.jpg)
2 |
COUVERCLE BOISSEAU DE GAZ ORIGINE PIAGGIO COMMUN A LA GAMME -431654- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
3 |
BAGUE DE GUIDAGE AIGUILLE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288873- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/7/img/66687.jpg)
4 |
COIFFE DE CARBURATEUR DELLORTO ORIGINE PIAGGIO COMMUN A LA GAMME -485671- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/8/7/img/73087.jpg)
5 |
STARTER ORIGINE PIAGGIO 50 ZIP 2000>, TYPHOON, NRG, LIBERTY, VESPA LX 2005>, PRIMAVERA 2013>VESPA-S 2007>, SPRINT 2014>/GILERA 50 STALKER, RUNNER 2005>/APRILIA 50 SR MOTARD, SRH2O -CM105905- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/0/img/73100.jpg)
6 |
AIGUILLE CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 2T -CM107510- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
7 |
CIRCLIPS D'AIGUILLE DE CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER -288872- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/6/img/73146.jpg)
8 |
POINTEAU ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 2T -CM128501- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
9 |
FLOTTEUR, POINTEAU ET AXE DE CUVE POUR CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 2T -482916- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/4/img/66664.jpg)
10 |
CUVE CARBURATEUR SCOOT ORIGINE PIAGGIO 50 ZIP, NRG, LIBERTY, TYPHOON, FLY, VESPA LX, VESPA-S,/GILERA 50 RUNNER, STALKER, SMT, RCR/APRILIA 50 SR, DERBI SENDA -484704- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
11 |
RESSORT VIS AIR CARBU ORIGINE PIAGGIO COMMUN A LA GAMME -152608- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/5/img/68725.jpg)
12 |
VIS REGLAGE PAPILLON DE GAZ ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 2T -828074- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/2/img/73102.jpg)
13 |
VIS REGLAGE AIR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 2T -CM107701- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/5/img/73045.jpg)
14 |
GICLEUR PRINCIPAL (53) ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 2T -CM101704- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/6/7/img/73067.jpg)
15 |
GICLEUR DE RALENTI ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 2T -CM102103- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/8/1/img/73181.jpg)
16 |
VOLET/BOISSEAU DE GAZ ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -CM141710- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
17 |
RESSORT VIS AIR ORIGINE PIAGGIO COMMUN A LA GAMME -085285- Plus d'informationsQuantité requise : 1 |
