Eclatés de véhicule - VESPA VESPA LX 50 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

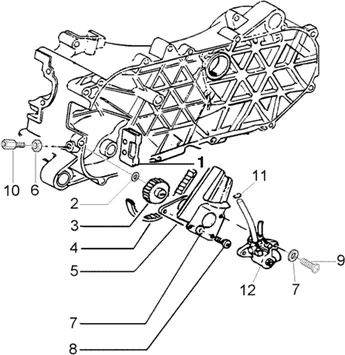

Moteur : T12 POMPE D'HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/705/Vespa_LX_50_2T_1998-2005_T12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/8/img/66178.jpg)
1 |
PASSE CABLES ORIGINE PIAGGIO COMMUN A LA GAMME -287021- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/9/img/66179.jpg)
2 |
RONDELLE DE BUTEE PIGNON POMPE A HUILE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME 50 CC 2T 287073- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/7/img/146187.jpg)
3 |
ENGRENAGE/PIGNON POMPE A HUILE SCOOT ORIGINE PIAGGIO 50 TYPHOON, NRG, FLY, LIBERTY, ZIP, VESPA PRIMAVERA, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -1A007694- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/1/img/66161.jpg)
4 |
COURROIE POMPE A HUILE ORIGINE PIAGGIO 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY -286162- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/2/img/66162.jpg)
5 |
PLAQUE SUPPORT POMPE A HUILE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 2T -286163- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
6 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
7 |
RONDELLE (5,3X10X0,5) ORIGINE PIAGGIO COMMUN A LA GAMME -006975- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
8 |
VIS CRUCIFORME (5X12) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -015585- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
9 |
VIS CRUCIFORME (5X21) ORIGINE PIAGGIO COMMUN A LA GAMME -015856- Plus d'informationsDescription : COMMUN A TOUTE LA GAMME Quantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/5/img/65745.jpg)
10 |
VIS REGLAGE CABLE DE POMPE A HUILE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC 2T -146197- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/5/img/66705.JPG)
11 |
COLLIER (5MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -486149- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/7/img/68607.jpg)
12 |
POMPE A HUILE SCOOT ORIGINE PIAGGIO 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY -82652R- Plus d'informationsQuantité requise : 1 |
