Eclatés de véhicule - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

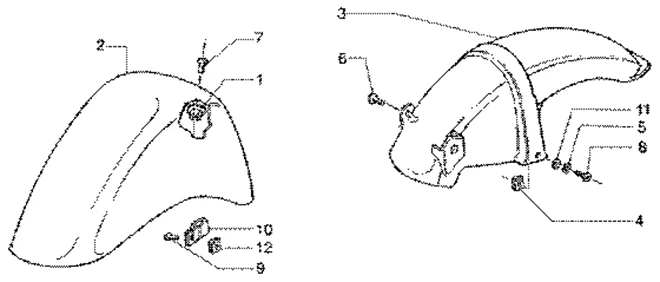

Châssis : T27 GARDE BOUE AV ET AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
1 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245- Plus d'informationsQuantité requise : 3 |
|||||||||
2 |
82490000AA - GARDE BOUE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
82490000F2 - GARDE BOUE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/6/5/4/img/92654.jpg)
2 |
GARDE BOUE AVANT BRUT ORIGINE PIAGGIO VINTAGE ET2, ET4 -8249005 Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
82490000V9 - GARDE BOUE AVT Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
82490000VA - GARDE BOUE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
8249005060 - GARDE BOUE 336 Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
8249005066 - GARDE BOUE 913 Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
8249005087 - GARDE BOUE 724 Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
GARDE BOUE AVANT ORIGINE PIAGGIO ET2, ET4 VINTAGE NOIR 94 -8249005090- Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
8249005095 - GARDE BOUE AVT 729 Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
82490050A7 - GARDE-BOUE AVANT ET-2/4 686 GRIS Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
82490050B2 - GARDE BOUE 693 Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
82490050D1 - GARDE BOUE AV BLE251 Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
GARD.BOUE AV. |
|||||||||
|
2 |
82490050R7 - GARDE-BOUE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
|
|||||||||
|
2 |
|
|||||||||
|
2 |
82490050V6 - GARDE-BOUE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
|
|||||||||
|
2 |
8249185 - GARDE BOUE 208 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/9/7/2/5/img/199725.jpg)
3 |
GARDE BOUE ARRIERE ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, 50 ZIP 2006>2016, NRG, LIBERTY/GILERA 50 STALKER -5A001285 Plus d'informationsQuantité requise : 1 |
|||||||||
|
3 |
GARDE BOUE ARRIERE ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, 50 ZIP 2006>2016, NRG, LIBERTY/GILERA 50 STALKER -5A001285 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
5 |
RONDELLE EVENTAIL (6,6X11X0) ORIGINE PIAGGO COMMUN A LA GAMME -012533- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 1 |
|||||||||
|
7 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 3 |
|||||||||
|
8 |
277330 - VIS Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
9 |
VIS AUTOFOREUSE (4,2X9,5) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -015900- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/7/8/img/79878.jpg)
10 |
COLLIER GUIDE CABLE ORIGINE PIAGGIO 50-125 VESPA S , LX, LXV, LT, GTS -562919 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
11 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
12 |
ECROU TOLE (4.2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017408- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
12 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 1 |
|||||||||
