Eclatés de véhicule - VESPA VESPA ET4 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

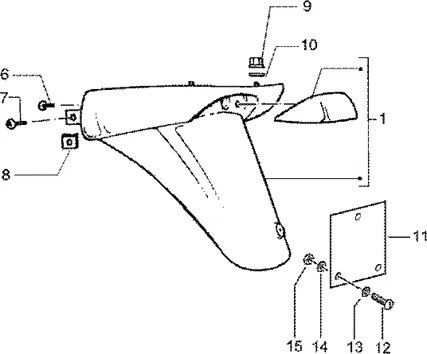

Châssis : T38 PROTECTION AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/708/Vespa_ET4_50_1998-2005_T38.PNG)
1 |
BAVETTE ARRIERE GRISE ORIGINE PIAGGIO VESPA 50 ET2, ET4 1999> -294218000D- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
2942180090 - BAVETTE AR 94 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
29421800G5 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
29421800V3 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
29421800V9 - BAVETTE AR Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
29421800VA - BAVETTE AR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/4/img/66264.jpg)
2 |
BOUCHON CACHE ORIGINE PIAGGIO COMMUN A LA GAMME -293717- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
7 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349- Plus d'informationsDescription : COMMUN A LA GAMME PIAGGIO Quantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
8 |
ECROU TOLE (4.2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017408- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
9 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
10 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/8/img/67968.jpg)
11 |
SUPPORT DE PLAQUE IMMATRICCULATION ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -642235- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
11 |
PORTE PLAQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -584884- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
12 |
VIS CRUCIFORME (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -015996- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
13 |
RONDELLE PLATE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -013763- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
14 |
RONDELLE (4,2X7,6X0,9) ORIGINE PIAGGIO COMMUN A LA GAMME -016404- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
15 |
ECROU (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -020104- Plus d'informationsQuantité requise : 3 |
