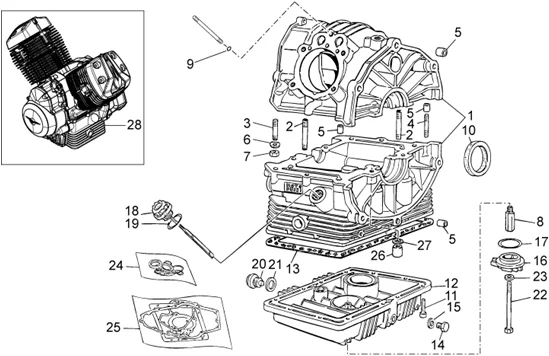

Moteur : 34.34 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/540/V7_Special_750_2014_34.34.PNG)
1 |
2A0002355 - BASAMENTO COMPLETO X RIC.. Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
GU96451560 - VIS SANS TETE Plus d'informationsQuantité requise : 4 |
|||||||||
|
3 |
GU96451430 - VIS SANS TETE Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/2/1/img/132821.jpg)
4 |
GOUJON (8X55) ORIGINE PIAGGIO COMMUN A LA GAMME -GU96508055 Plus d'informationsQuantité requise : 2 |
|||||||||
|
5 |
GU19015020 - BAGUE Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
6 |
RONDELLE ELASTIQUE (8X15X0.3) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61270300 Plus d'informationsQuantité requise : 6 |
|||||||||
|
7 |
GU92606208 - ECROU M8X1,25 Plus d'informationsQuantité requise : 6 |
|||||||||
|
8 |
GU190038006 - RACCORD Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/9/img/132209.jpg)
9 |
JOINT TORIQUE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU90706076 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/5/6/img/99156.jpg)
10 |
JOINT SPI (53X72X12) VILLEBREQUIN ORIGINE MOTO-GUZZI V7, V9, V50, V35, NEVADA, BREVA -886365 Plus d'informationsQuantité requise : 1 |
|||||||||
|
11 |
GU98682325 - VIS TCEI M6X25 Plus d'informationsQuantité requise : 12 |
|||||||||
|
12 |
976604 - CARTER D'HUILE ORIGINE MOTO GUZZI BREVA 750 2003>2009, NEVADA 750 2009>2013, V7 750 2008>2016 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/0/img/99290.jpg)
13 |
JOINT DE CARTER MOTEUR ORIGINE PIAGGIO MOTO-GUZZI 750 V-7, BREVA, NEVADA -887004 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
14 |
BOUCHON VIDANGE HUILE MOTEUR/BV/PONT ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU31003766 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
15 |
JOINT BOUCHON DE VIDANGE ORIGINE PIAGGIO POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V100 -GU10528900 Plus d'informationsQuantité requise : 1 |
|||||||||
|
16 |
COUVERCLE FILTRE A HUILE ORIGINE MOTO GUZZI V7 2020< -1A0051995- Plus d'informationsQuantité requise : 1 |
|||||||||
|
16 |
COUVERCLE FILTRE A HUILE ORIGINE MOTO GUZZI V7 2020< -1A027178 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/3/img/132243.jpg)
17 |
JOINT COUVERCLE DE FILTRE A HUILE ORIGINE PIAGGIO MOTO-GUZZI V7, V9, V85 -GU90706444 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/8/2/0/img/98820.jpg)
18 |
JAUGE A HUILE POTEUR ORIGINE PIAGGIO MOTO-GUZZI 750 NEVADA, V7, BREVA, STRADA, V50, V65 -883826- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/2/img/132232.jpg)
19 |
JOINT TORIQUE (28,24X2,62) BOUCHON REMPLISSAGE HUILE ORIGINE MOTO GUZZI V7, V9 2020< -GU90706281- Plus d'informationsQuantité requise : 1 |
|||||||||
|
20 |
GU12003702 - BOUCHON VID.HUILE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
21 |
JOINT DE BOUCHON DE VIDANGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU95100709- Plus d'informationsQuantité requise : 1 |
|||||||||
|
22 |
GU27152885 - BOULON Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
23 |
RONDELLE PLATE (8,25X15X1) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU12154200 Plus d'informationsQuantité requise : 1 |
|||||||||
|
24 |
GU32999510 - JOINT SPY-SERIE Plus d'informationsQuantité requise : 1 |
|||||||||
|
25 |
GU32999010 - JOINTS-JEU Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
26 |
ECROU COLONNE DE DIRECTION OU DE CARTER MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU13021900- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
27 |
RONDELLE AJUSTEMENT (10.5X18X0.8) ORIGINE MOTO GUZZI -GU95129180 Plus d'informationsQuantité requise : 4 |
|||||||||
|
28 |
2L0001895 - ASS. MOTORE LINEA V7 MY14 X RIC. Plus d'informationsQuantité requise : 1 |
|||||||||
