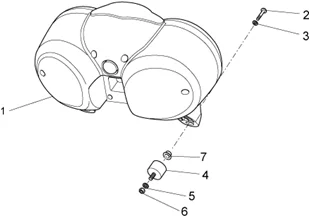

Chassis : 33.17 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/538/V7_Racer_750_USA_CND_2015_33.17.PNG)
1 |
887195 - CRUSCOTTO V7 MPH Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/8/1/img/126081.jpg)
2 |
VIS BTR TETE BOMBEE (6X10) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98370609- Plus d'informationsQuantité requise : 3 |
||||||
|
3 |
GU95005306 - RONDELLE 6,4X13X1,5 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
4 |
SILENTBLOC ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU93222023- Plus d'informationsQuantité requise : 3 |
||||||
|
5 |
GU95021206 - RONDELLE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
6 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150026- Plus d'informationsQuantité requise : 3 |
||||||
|
6 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150026- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
7 |
DOUILLE/ENTRETOISE (6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121032- Plus d'informationsQuantité requise : 3 |
