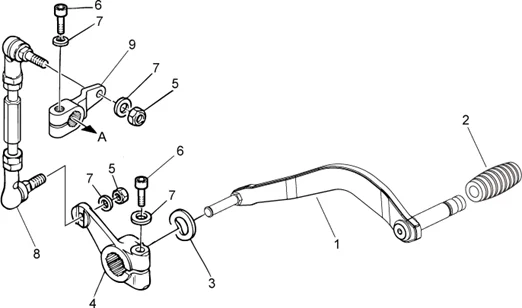

Chassis : 33.06 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/759/V7_II_Stornello_ABS_2016_33.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/2/3/img/98123.jpg)
1 |
SELECTEUR DE VITESSE ORIGINE MOTO GUZZI 750 V7 E3 2015>2016 -2B0010965 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
2 |
CAOUTCHOUC LEVIER DE FREIN ARRIERE OU SELECTEUR ORIGINE PIAGGIO POUR MOTO-GUZZI/APRILIA -AP8120912 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
3 |
RONDELLE ELASTIQUE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU95129260 Plus d'informationsQuantité requise : 2 |
||||||
4 |
898283 - LEVA COMANDO CAMBIO * Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU92630707 - ECROU M6X1 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
GU98632322 - VIS M6X22 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
7 |
RONDELLE ELASTIQUE (6.4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -GU03013800 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/8/2/img/98182.jpg)
8 |
TRINGLE DE COMMANDE DE BOITE DE VITESSE ORIGIN E PIAGGIO V7, V9 MOTO GUZZI 2015> / 125 TUONO APRILIA 2017>2021 -2B001941 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/9/2/img/129792.jpg)
9 |
LEVIER DE COMMANDE DE VITESSE ORIGINE PIAGGIO MOTO-GUZZI 750 NEVADA, V7, 850 V9 -GU20258221 Plus d'informationsQuantité requise : 1 |
