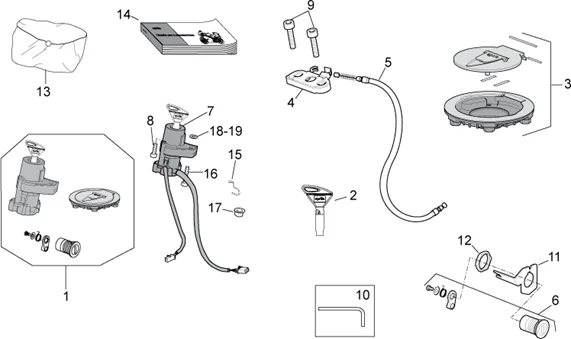

Chassis : 28.36 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/585/Tuono_V4_1100_RR_2015_28.36.PNG)
1 |
B043920 - KIT SERRURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/7/4/img/62274.jpg)
2 |
EBAUCHE DE CLE ORIGINE PIAGGIO APRILIA 750 SHIVER 2007>, 900 SHIVER 2017>, 750 DORSODURO 2008>, 900 DORSODURO 2017>, 1200 DORSODURO 2010>, 1100 RSV-4 2019>, 650 PEGASO, 850 MANA -B044413 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
B043929 - BOUCHON ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8102913 - PL.FIX.SELLE PASS. Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
858955 - CABLE SERRURE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8104719 - SERRATURA SELLA Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
858580 - KIT SERRURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
8 |
VIS A ARRACHEMENT/AUTO-CASSANTE BTR (8X28) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152238 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/2/img/71892.jpg)
9 |
VIS BTR TETE FRAISEE (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150468 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
894195 - TOOLS KEY Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8134948 - PIASTRINA FERMACAVO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
12 |
ECROU SERRURE (M22 X 1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102523 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
894056 - TROUSSE A OUTILS Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
|
||||||
|
14 |
|
||||||
|
14 |
|
||||||
|
14 |
|
||||||
|
15 |
B044620 - PASSE-CABLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
16 |
VIS BTR (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150236 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
17 |
RONDELLE EN T (8.2X12X4) POUR VIS DE 6 ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121096 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
18 |
RONDELLE PLATE (8.4X16X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150017 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
RONDELLE CANNELEE (8.4X13) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152154 Plus d'informationsQuantité requise : 2 |
