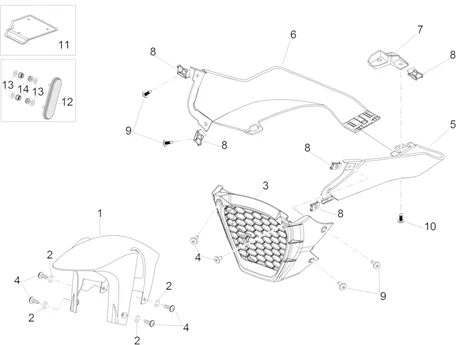

Chassis : 28.11 CARROSSERIE AV. III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/585/Tuono_V4_1100_RR_2015_28.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/6/0/0/img/145600.jpg)
1 |
GARDE-BOUE AVANT ORIGINE PIAGGIO APRILIA 1200 CAPONORD, 900 SHIVER, 1000 RSV-4, 1000-1100 TUONO -2B003404 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
2 |
RONDELLE ELASTIQUE COURBE (8.5X15X0.8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150376 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/6/3/img/62063.jpg)
3 |
CADRE/GRILLE DE RADIATEUR ORIGINE PIAGGIO APRILIA 1000-1100 TUONO -B043248 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
4 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150500 Plus d'informationsQuantité requise : 4 |
||||||
5 |
B043247 - CARENE INF. G Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
B043246 - CARENE INF.D Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/0/6/img/142406.jpg)
7 |
BRIDE FIXATION CARENAGE ORIGINE PIAGGIO APRILIA 1000-1100 TUONO 2011<2020 -2B002563 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 5 |
||||||
|
9 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150500 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
10 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
B043880 - BRIDE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
12 |
CATADIOPTRE AMBRE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8124719 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
13 |
RONDELLE PLATE (4X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150158 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
14 |
ECROU AUTOBLOQUANT/NYLSTOP (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150204 Plus d'informationsQuantité requise : 4 |
