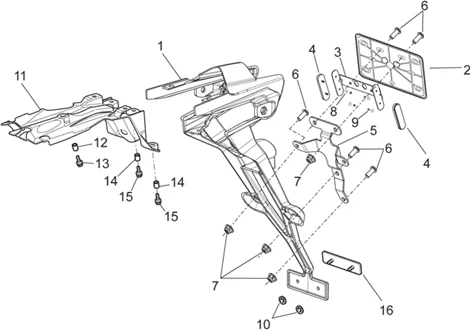

Chassis : 28.16 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/642/SXV_550_2008_28.16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/8/1/img/97381.jpg)
1 |
BAVETTE ARRIERE ORIGINE PIAGGIO APRILIA 450-550 RXV, SXV 2009>2011 -AP9100610 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
2 |
SUPPORT DE PLAQUE IMMATRICULATION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI ET MAXISCOOTER APRILIA -AP8149034- Plus d'informationsQuantité requise : 1 |
||||||
3 |
AP8134677 - SUPPORT CATADIOPTRE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
4 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO ET MAXISCOOTER APRILIA -AP8124718 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
855071 - SUPPORT PLAQUE + CATADIOPTRE USA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
6 |
VIS BTR TETE BOMBEE (6X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152108 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
7 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
8 |
RONDELLE PLATE (4.3X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150011 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
9 |
ECROU AUTOBLOQUANT/NYLSTOP (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150204 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
10 |
RONDELLE ELASTIQUE (5) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -AP8150450 Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
AP9100288 - SOTTOCODA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
12 |
RONDELLE EN T (10X16X3,5) POUR VIS DE 6 ORIGINE PIAGGIO COMMUN A LA GAMME -AP9100053 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
14 |
DOUILLE EN T INTERIEUR 5 MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121795 Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279 Plus d'informationsQuantité requise : 4 |
||||||
|
16 |
AP8112202 - CATADIOPTRE ARRIERE Plus d'informationsQuantité requise : 1 |
