Eclatés de véhicule - APRILIA SXV 550 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

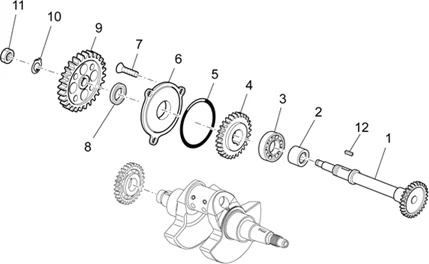

Moteur : 29.46 ARBRE TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/642/SXV_550_2008_29.46.PNG)
1 |
851009 - PIGNON MOYEU Z20 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
85106R - ROULEMENT A ROULEAUX D14-D22-S Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP9150387 - CUSCIN. SFERE D12-D28 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP9150273 - INGRAN.RINVIO DISTRIBU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/7/7/4/img/97774.jpg)
5 |
JOINT TORIQUE (0.79X1.78) ORIGINE PIAGGIO COMMUN A LA GAMME -AP9150348 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP9150483 - FLANGIA CHIUS.V.DISTRI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
7 |
VIS TORX (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -B014598 Plus d'informationsQuantité requise : 3 |
||||||
|
8 |
AP9150390 - ANELLO DI TEN. D28-D20 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP9150285 - INGR.COND.COM.DISTRIBU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/7/5/2/img/97752.jpg)
10 |
RONDELLE DE SURETE ARBRE DE TRANSMISSION ORIGINE PIAGGIO 450-550 RXV OFF ROAD APRILIA -AP9150299 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
851011 - ECROU M12X1X4,5 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AP9150389 - LINGUETTA4X4X18UNI6604 Plus d'informationsQuantité requise : 1 |
