Eclatés de véhicule - APRILIA SX 125 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

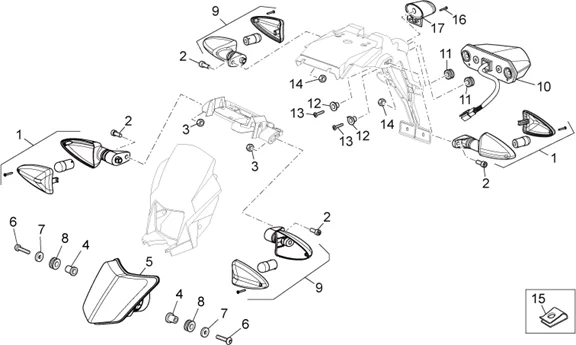

Chassis : 28.13 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/702/SX_125_2008-2010_28.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/5/img/71625.jpg)
1 |
CLIGNOTANT AVD/ARG ORIGINE DERBI 50 SENDA 2018>/GILERA 50 SMT, RCR 2018>/ APRILIA 50 SX, RX 2018>, 450-550 RXV, SXV 2008>2011 -AP8127783 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
2 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152137 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
3 |
ECROU AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150430 Plus d'informationsQuantité requise : 2 |
||||||
4 |
AP8121665 - "DOUILLE EN ""T""" Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/1/2/img/96512.jpg)
5 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO GILERA 50 SMT, RCR 2018>/DERBI SENDA 2018>/APRILIA 50 RX, SX 2014>, 125 RX, SX 2008>2010, 450-550 RXV, SXV 2008>2011 -855038 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
859702 - PHARE AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152137 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
7 |
RONDELLE PLATE (6.4X15X1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152181 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
8 |
CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8112600 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/6/img/71626.jpg)
9 |
CLIGNOTANT AVG/ARD ORIGINE DERBI 50 SENDA 2018>/GILERA 50 SMT, RCR 2018>/ APRILIA 50 SX, RX 2018>, 450-550 RXV, SXV 2008>2011 -AP8127784 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
AP8127652 - FANALE POST * Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8112600 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
12 |
DOUILLE EN T INTERIEUR 5 MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121795 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
13 |
VIS CRUCIFORME (4.2X20) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150270 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
15 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8202449 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
16 |
VIS PARKER (4,2X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152351 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
17 |
ECLAIRAGE DE PLAQUE D'IMMATRICULATION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -85256R Plus d'informationsQuantité requise : 1 |
