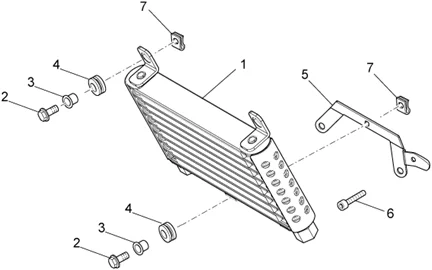

Chassis : 33.27 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.27.PNG)
1 |
2B000891 - RADIATORE OLIO Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
978579 - RADIATORE OLIO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
2 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
3 |
DOUILLE EN T (DIAMETRE INTERIEUR 6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221023 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
4 |
CAOUTCHOUC/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120030 Plus d'informationsQuantité requise : 3 |
||||||
|
5 |
886858 - SUPPORTO RADIATORE OLIO Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
978846 - SUPPORTO RADIATORE CON PI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
6 |
VIS BTR (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680340 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 1 |
