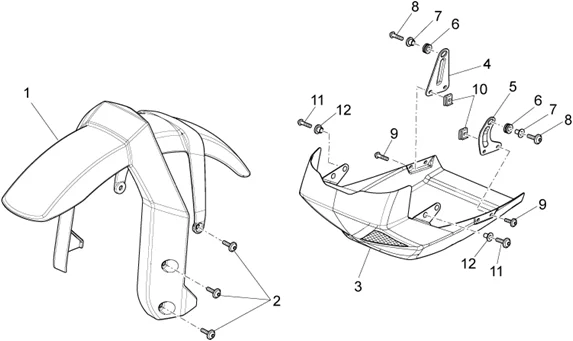

Chassis : 33.18 GARDE BOUE AV-EMBAS.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/519/Stelvio_1200_8V_STD_NTX_2011-2015_33.18.PNG)
1 |
88625400YR2 - GARDE-B AV. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
978445 - PARAF ANT GREZZO Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
88625400BM - PARAF ANT BIANCO DIAMANTE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
88625400DE - PARAF ANT BLU DERVIO Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
88625400NI - PARAF ANT NERO COMPETITION Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
88625400XV6 - PARAF ANT VERDE RAPTOR Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
88625400Y02 - PARAF ANT NERO GUZZI Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
88625400YA2 - PARAF ANT ARANCIO RAME LUCIDO Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
2 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -2B014101 Plus d'informationsQuantité requise : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
2 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302 Plus d'informationsQuantité requise : 6 |
|||||||||
|
3 |
886329 - PARACOPPA COMPLET0 Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
978777 - STAFFA DESTRA FISSAGGIO PARACOPPA Plus d'informationsQuantité requise : 1 |
|||||||||
|
5 |
978776 - STAFFA SINISTRA FISSAGGIO PARACOPPA Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
GU91551010 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
7 |
DOUILLE EN T (8,5X10,7X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221128 Plus d'informationsQuantité requise : 2 |
|||||||||
|
8 |
GU98350425 - VITE TBEI DA M8X25 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
9 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
10 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -248419 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
11 |
VIS BTR TETE BOMBEE (8X16) ORIGINE PIAGGIO COMMUN A LA GAMME -582428 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
12 |
RONDELLE EN T (8.2X12X4) POUR VIS DE 6 ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121096 Plus d'informationsQuantité requise : 4 |
|||||||||
