Eclatés de véhicule - APRILIA SPORT CITY STREET 125 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

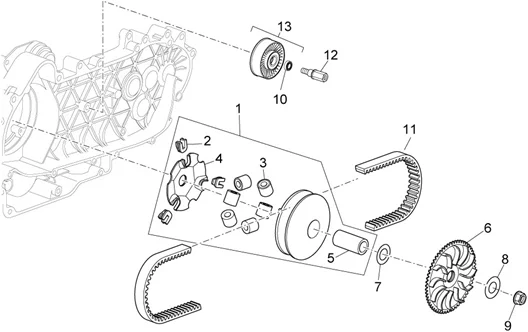

Tavole : 49 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/284/Sport_City_Street_125_4T_4V_E3_2012_49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/2/1/img/157621.jpg)
0 |
KIT TRANSMISSION (COURROIE, GALETS, GUIDES) ORIGINE PIAGGIO 125 BEVERLY 2005>2012, CARNABY 2007>2010, X10 2012>/APRILIA 125 SCARABEO 2002>2006, SPORT-CITY 2004>2010 -1R000450- Plus d'informationsDescription : Courroie 842009 Galets CM1038045 Quantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/3/img/73233.jpg)
1 |
POULIE MOTRICE/VARIATEUR ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 -CM144403- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
2 |
GUIDE/PATIN DE VARIATEUR MAXISCOOTER ORIGINE PIAGGIO 125 MP3 2007>, X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, VESPA LX 2005>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005> -4348555- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/9/img/73079.jpg)
3 |
GALET/ROULEAU MAXISCOOTER ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T (7,4 G) (JEU DE 6) -CM1038045- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
4 |
FLASQUE A ROULEAUX POULIE MOTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -485710- Plus d'informationsQuantité requise : 1 |
||||||
5 |
483889 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/8/img/69358.jpg)
6 |
JOUE FIXE DE POULIE MOTRICE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 -845607- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
876403 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/4/img/68964.jpg)
8 |
RONDELLE PLATE (17X32X1.5) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -831363- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
9 |
ECROU (M12X1.25) DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -486324- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
82843R - PALIER RADIAL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/6/8/2/img/176682.JPG)
11 |
COURROIE MAXISCOOTER ORIGINE PIAGGIO 125 X10 2012>, BEVERLY INJECTION 2010>, YOURBAN 2011> -1A011456- Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
COURROIE MAXISCOOTER ORIGINE PIAGGIO 125 X10 2012>, BEVERLY INJECTION 2010>, YOURBAN 2011> -1A011456- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/8/img/68838.jpg)
12 |
VIS SPECIALE DE POULIE TENSION COURROIE ORIGINE PIAGGIO 125-250-300 BEVERLY, CARNABY, 125 X10/APRILIA 125-250 SPORT-CITY, SCARABEO -829326- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/4/img/69094.jpg)
13 |
POULIE DE COURROIE ORIGINE PIAGGIO 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, 125 X10/APRILIA 125-300 ATLANTIC/GILERA 250-300 NEXUS -833989- Plus d'informationsQuantité requise : 1 |
