Eclatés de véhicule - APRILIA SPORT CITY STREET 125 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

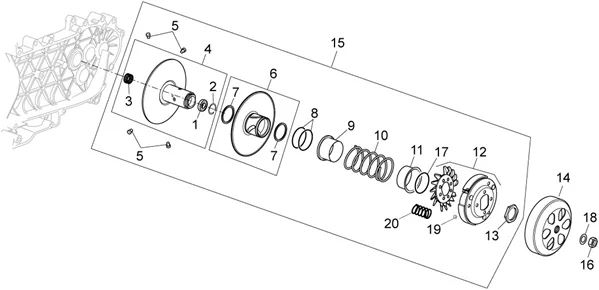

Tavole : 46 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/284/Sport_City_Street_125_4T_4V_E3_2012_46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/3/img/68523.jpg)
1 |
CAGE A AIGUILLES (20X29X18) DE CORRECTEUR DE COUPLE MAXISCOOTER ORIGINE PIAGGIO COMMUN A LA GAMME 125-250-300 -82518R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/9/img/66629.jpg)
2 |
CLIPS/CICLIPS DE POULIE ENTRAINEE ORIGINE PIAGGIO 125-250-300 -483226- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/7/img/68677.jpg)
3 |
ROULEMENT (17X30X7) DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTEUR 125-250-300 -82753R - Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/7/img/68927.jpg)
4 |
DEMI POULIE RECEPTRICE (PARTIE FIXE) ORIGINE PIAGGIO 125 MP3, X8, X9, X10, VESPA GTS, VESPA LX, YOURBAN, TYPHOON/GILERA 125 NEXUS, RUNNER/APRILIA 125 ATLANTIC, SCARABEO, SPORT-CITY, SR-MAX -830580- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/2/img/68772.jpg)
5 |
AXE DE GUIDAGE DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -828717- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/4/img/70704.jpg)
6 |
FLASQUE MOBILE DE POULIE RECEPTRICE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007 (LIVRE SANS JOINT TORIQUE) -879002- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/2/img/66392.JPG)
7 |
JOINT SPI (41X48X4) ORIGINE PIAGGIO COMMUN A LA GAMME -431089- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/2/img/66382.jpg)
8 |
JOINT DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -430585- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/4/img/66394.jpg)
9 |
GUIDE INTERIEUR DE RESSORT POULIE ENTRAINEE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -4310935- Plus d'informationsQuantité requise : 1 |
||||||
10 |
B013107 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/5/img/66765.jpg)
11 |
GUIDE EXTERIEUR DE RESSORT POULIE ENTRAINEE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -487936- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/8/img/72628.jpg)
12 |
EMBRAYAGE ORIGINE PIAGGIO 125 MP3 2008>, YOURBAN 2012>, BEVERLY 2010>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/APRILIA 125 SPORT-CITY STREET 2012> -B013246- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/4/img/66434.jpg)
13 |
ECROU DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -433232- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/0/9/img/69309.jpg)
14 |
TAMBOUR D'EMBRAYAGE ORIGINE PIAGGIO 125-250-300 MP3, BEVERLY, 125-250 X8, X9-EVO, X-EVO, X7/GILERA 125-250-300 NEXUS, 125 RUNNER 4T/APRILIA 125-250-300 SPORT-CITY-ONE, ATLANTIC -8440494- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/4/0/img/73340.jpg)
15 |
POULIE RECEPTRICE ORIGINE PIAGGIO 125 MP3 IE 2008>2012, X10 2012>, X-EVO 2007>, BEVERLY 2010>2015, VESPA GTS 2007>, YOURBAN 2012>/GILERA 125 RUNNER 2008>2016 -CM162408- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
16 |
ECROU (M12X1.25) DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -486324- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
17 |
CLIPS/CIRCLIPS (9.3) DE POULIE ENTRAINEE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 -006410- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/2/img/66132.jpg)
18 |
RONDELLE (12X22X1) ORIGINE PIAGGIO COMMUN A LA GAMME -274246- Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
844621 - PASSE CABLE Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
434673 - RESSORT VARIATEUR Plus d'informationsQuantité requise : 1 |
