Eclatés de véhicule - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

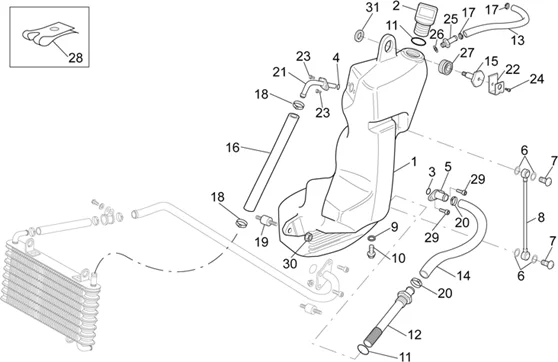

Chassis : 28.27 RÉSERVOIR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/3/img/45193.jpg)
2 |
BOUCHON RESERVOIR HUILE ORIGINE PIAGGIO APRILIA 1000 RSV, TUONO, FUTURA, FALCO, CAPONORD -AP8102618- Plus d'informationsQuantité requise : 1 |
||||||
3 |
AP8120196 - JOINT TORIQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/5/img/49575.JPG)
4 |
JOINT TORIQUE (115) ORIGINE APRILIA COMMUN A LA GAMME -AP8144008- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8106387 - TUYAU HUILE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
6 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004- Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
AP8121409 - VIS TUYAU HUILE Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP8144275 - TUYAU NIVEAU HUILE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/0/img/97070.jpg)
9 |
RONDELLE PLATE (8X16X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121862- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
10 |
VIS BRIDE TH (8X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152285- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/3/img/97063.jpg)
11 |
JOINT TORIQUE POIGNEE GAUCHE ORIGINE APRILIA COMMUN A LA GAMME -AP8120190- Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
AP8144015 - TUYAU HUILE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/1/img/49631.jpg)
14 |
TUYAU HUILE SUR RESERVOIR ORIGINE PIAGGIO APRILIA 1000 FALCO -AP8144148 - Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP8121387 - PLAQUE FIX.RESERV.HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
TUYAU -2B006560- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.JPG)
17 |
COLLIER CLIC VERT (6.6X11X1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120446- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/2/img/71172.jpg)
18 |
COLLIER CLIC (17,5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102349- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/9/5/img/49595.jpg)
19 |
SILENTBLOC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8144061- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/0/img/71200.JPG)
20 |
COLLIER CLIC (20X8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102786- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
23 |
VIS BRIDE TH (6X12) ORIGINE PIAGGIO COMUUN A LA GAMME -AP8152277- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
24 |
VIS BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150050- Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
AP8102626 - RACCORD A DEUX VOIES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/2/img/50962.jpg)
26 |
RONDELLE PLATE (6.4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152184- Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
AP8220369 - CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
28 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
29 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150137- Plus d'informationsDescription : COMMUN A LA GAMME MOTO ET MAXISCOOTER APRILIA Quantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
30 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
31 |
RONDELLE PLATE (8.5X24X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150018- Plus d'informationsQuantité requise : 1 |
