Eclatés de véhicule - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

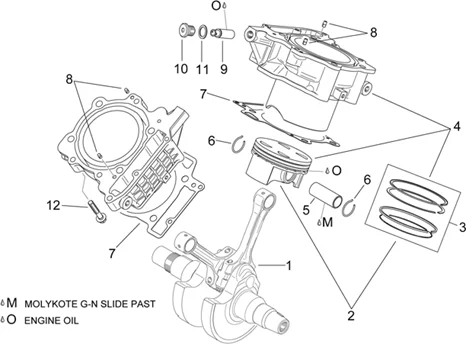

Moteur : 29.50 ARBRE MOTEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_29.50.PNG)
1 |
AP0295663 - ALBERO MOTORE CPL. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP0684310 - PISTON CPL. Plus d'informationsQuantité requise : 2 |
||||||
|
2 |
AP0684311 - PISTON CPL. Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
AP0295858 - SEGMENTS - SERIE * Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
AP0613417 - CYLINDRE AVEC PISTON GRIS Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
AP0216222 - AXE Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
AP0245436 - BAGUE DE BUTEE Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
AP0650390 - JOINT BASE CYLINDRE Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP0929650 - GOUPILLE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/6/0/7/img/43607.jpg)
9 |
TENDEUR CHAINE DE DISTRIBUTION COMPLET ORIGINE PIAGGIO APRILIA 1000 RSV-2 1998>2008, TUONO V2 2002>2009, CAPONORD 2001>2007, FUTURA 2001>2003, 125 LEONARDO 1996>2004, SCARABEO 1999>2004 -AP0236253- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/7/6/img/44276.jpg)
11 |
BAGUE/JOINT D'ETANCHEITE (16X22) ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA -AP0430622- Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
AP0940637 - VIS BRIDE Plus d'informationsQuantité requise : 8 |
