Eclatés de véhicule - APRILIA SCARABEO 2T 50 2014

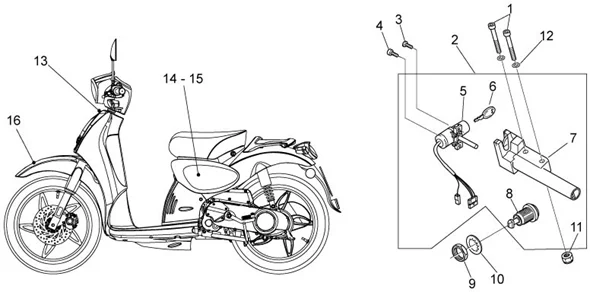

Chassis : 28.30 KIT SERRURE - DECALS
28.30 KIT SERRURE - DECALS
![]() 1 |
VIS BRIDE TH (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152284 Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
AP8202452 - KIT SERRURE Plus d'informationsQuantité requise : 1 |
||||||
![]() 3 |
VIS A ARRACHEMENT/AUTO-CASSANTE TH (6X17) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152140 Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150137- Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
860579 - COMMUTATEUR A CLEF Plus d'informationsQuantité requise : 1 |
||||||
![]() 6 |
AP8104598 - "CLE ""SCARABEO"" SANS TRANSPO." Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
AP8202355 - SERRATURA SELLA Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
AP8104600 - SERRURE PORTE-OBJETS Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
ECROU BAS (M19X1) ORIGINE PIAGGIO COMMUN A LA GAMME - AP8152194 Plus d'informationsQuantité requise : 1 |
||||||
![]() 10 |
RONDELLE EVENTAIL (D 19) DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221312 Plus d'informationsQuantité requise : 1 |
||||||
![]() 11 |
ECROU AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150430- Plus d'informationsQuantité requise : 2 |
||||||
![]() 12 |
RONDELLE PLATE (6,4X12,5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150014 Plus d'informationsQuantité requise : 2 |
||||||
![]() 13 |
2H000329000A1 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
2H000329000A2 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
2H000329000A3 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 13 |
2H000329000A4 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
2H000330000A1 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
2H000330000A2 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
2H000330000A3 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 14 |
2H000330000A4 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
2H000331000A1 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
2H000331000A2 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
2H000331000A3 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
2H000331000A4 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
2H000328000A1 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
2H000328000A2 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
2H000328000A3 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
2H000328000A4 - DECALCO Plus d'informationsQuantité requise : 1 |
