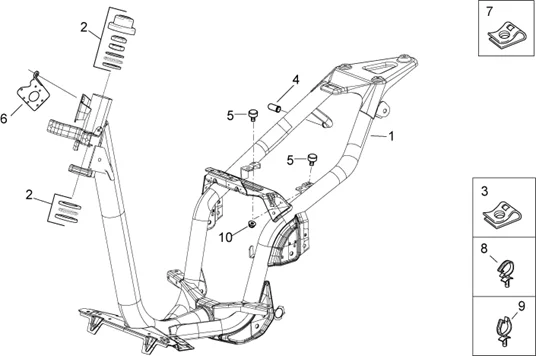

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/599/Scarabeo_50_2T_2014_28.01.PNG)
1 |
1B0011925 - CHASSIS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP82036666 - SERIE DIRECTION COMPLETE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/4/img/72284.jpg)
4 |
DOUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8220460- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8706329 - GOMMINO D:20 H:10 M6X20 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
AP8234138 - SUPPORT PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AP8221310 - PASSE-CABLE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8221311 - PASSE-CABLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299- Plus d'informationsQuantité requise : 2 |
