Eclatés de véhicule - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

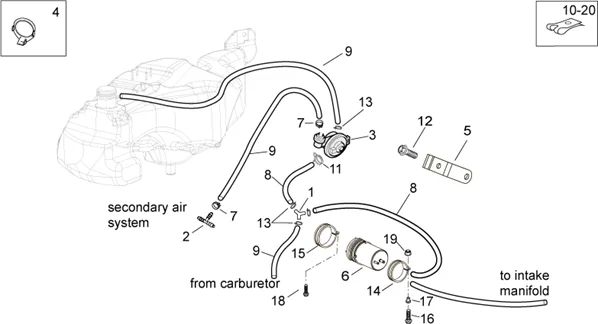

Moteur : 29.66 SYS.RÉCUP.VAP.ESS.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_29.66.PNG)
1 |
AP8120116 - "RACCORD EN ""Y""" Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8102727 - RACCORD 3 VOIES Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8106776 - """PURGE"" SOUPAPE" Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8134650 - BRIDE SUPP. SOUP. Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8146971 - SUPPORTO VALVOLA PURGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/2/img/71192.jpg)
6 |
FILTRE A CHARBON ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102678 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
7 |
COLLIER DURITE (D8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120179 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
8 |
DURITE/TUYAU ESSENCE (5.5X10) ORIGINE APRILIA-MOTO GUZZI COMMUN A LA GAMME -896544 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
896570 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
10 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
11 |
COLLIER SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102520 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
12 |
VIS BRIDE TH (5X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152273 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
13 |
COLLIER DURITE (10,1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101595 Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
AP8102688 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP8102719 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
16 |
VIS BRIDE TH (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152283 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
AP8121741 - DOUILLE TABLEAU DE BORD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
18 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
19 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152299 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 1 |
