Eclatés de véhicule - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

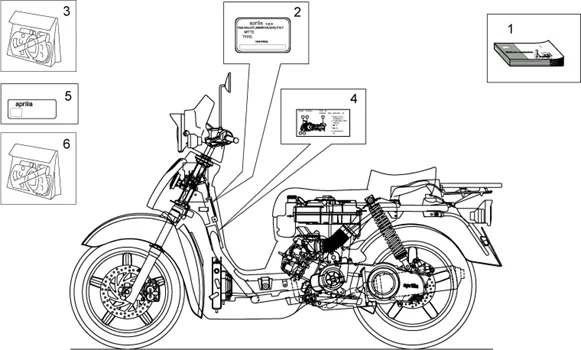

Chassis : 28.48 PLAQUETTE ET MANUELS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.48.PNG)
1 |
Man. instr/entr-F- |
||||||
|
1 |
Manuel instr. -USA- |
||||||
|
1 |
Livret d’util.et entret. |
||||||
|
2 |
AP8166331 - TARGHETTA COSTRUTTORE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8166378 - TARGHETTA COSTRUTTORE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8166681 - TARGHETTA COSTRUTTORE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
Plaquette constructeur |
||||||
|
3 |
AP8187012 - DECALCO SERIE 125 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8187013 - DECALCO SERIE 250 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8166193 - DECALCO SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8166365 - DECALCO SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8166366 - DECALCO SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8166380 - DECALCO SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8166420 - DECALCO SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8166585 - DECALCO SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8166586 - DECALCO SERIE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8166406 - TARGHETTA ANTIMANOMISSIONE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Plaquette ECE |
||||||
|
6 |
AP8166478 - DECALCO SERIE TECNICA Plus d'informationsQuantité requise : 1 |
