Eclatés de véhicule - APRILIA SCARABEO 2T 100 Mot Yamaha 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

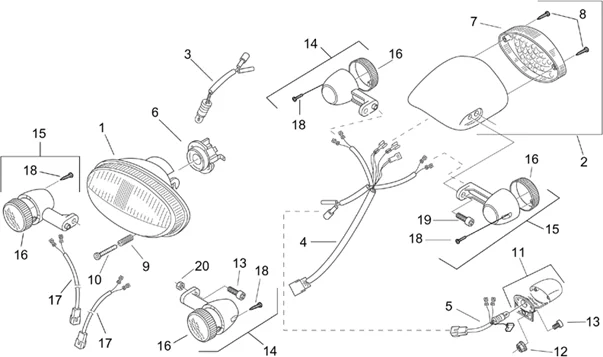

Chassis : 28.28 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/622/Scarabeo_100_2T_Mot_Yamaha_2000_28.28.PNG)
1 |
AP8124711 - PHARE AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8224313 - FEU ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8124809 - CABLAGE FEU AV Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8212550 - CABLAGE FEU/CLIGN.AR Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8124873 - CABLAGE LUMIERE PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/2/7/img/57227.jpg)
6 |
PORTE-AMPOULE OPTIQUE (AMPOULE BA20D) ORIGINE PIAGGIO APRILIA 50 SCARABEO -AP8224041- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8212679 - GLACE PHARE AR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/3/img/46923.jpg)
9 |
RESSORT DE PROJECTEUR ORIGINE APRILIA 50 SONIC 1998>2008 -AP8121710- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8150475 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8124899 - FEU PLAQUE IMM. GRIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
12 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81523066- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
13 |
VIS BTR (5X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150252- Plus d'informationsQuantité requise : 3 |
||||||
|
14 |
AP8124882 - CLIGNOT.AV.GA./ARR.DR. Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP8124883 - CLIGNOT.AV.DR./ARR.GA. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.JPG)
16 |
CABOCHON CLIGNOTANT ORIGINE APRILIA 50-125-250 RS 2005< -AP8212680- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/7/img/56297.jpg)
17 |
CABLAGE DE CLIGNOTANT AVANT ORIGINE PIAGGIO APRILIA 50 SCARABEO, SR H2O -AP8212698- Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
AP8224268 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
19 |
AP8224267 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/6/img/50826.jpg)
20 |
ECROU M5 ORIGINE PIAGGIO COMMUN A GAMME -AP8150025- Plus d'informationsQuantité requise : 2 |
