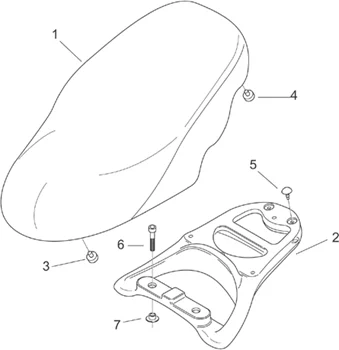

Chassis : 28.14 SELLE-PORTE BAG
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/622/Scarabeo_100_2T_Mot_Yamaha_2000_28.14.PNG)
1 |
AP8129281 - SELLE LONGUE MARRON Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8129490 - SELLE NOIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
3 |
TAMPON CAOUTCHOUC DU LOGEMENT DE SELLE ORIGINE APRILIA -AP8220349- Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8220517 - CAOUTCHOUC APPUI SELLE Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
5 |
BOUCHON CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120001- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
6 |
VIS BTR (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150403- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
7 |
AP8121728 - "DOUILLE EN ""T""" Plus d'informationsQuantité requise : 3 |
