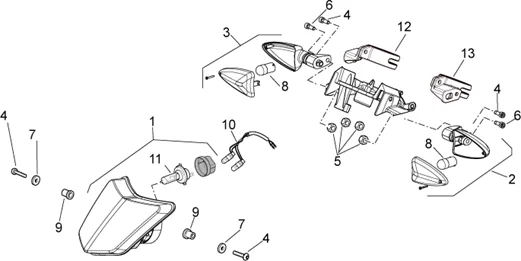

Chassis : 28.25 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/646/RXV_450_2009-2011_28.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/1/2/img/96512.jpg)
1 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO GILERA 50 SMT, RCR 2018>/DERBI SENDA 2018>/APRILIA 50 RX, SX 2014>, 125 RX, SX 2008>2010, 450-550 RXV, SXV 2008>2011 -855038 Plus d'informationsQuantité requise : 1 |
||||||
1 |
859702 - PHARE AVANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/6/img/71626.jpg)
2 |
CLIGNOTANT AVG/ARD ORIGINE DERBI 50 SENDA 2018>/GILERA 50 SMT, RCR 2018>/ APRILIA 50 SX, RX 2018>, 450-550 RXV, SXV 2008>2011 -AP8127784 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/5/img/71625.jpg)
3 |
CLIGNOTANT AVD/ARG ORIGINE DERBI 50 SENDA 2018>/GILERA 50 SMT, RCR 2018>/ APRILIA 50 SX, RX 2018>, 450-550 RXV, SXV 2008>2011 -AP8127783 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
4 |
VIS BTR TETE BOMBEE (6X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152108 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
5 |
ECROU AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150430 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
6 |
VIS BTR TETE BOMBEE (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152137 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
7 |
RONDELLE PLATE (6.4X15X1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152181 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8127489 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
9 |
DOUILLE/ENTRETOISE (6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121032 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
856610 - CABLAGE FEU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
11 |
AMPOULE/LAMPE 12V 60/55W H4 ORIGINE PIAGGIO COMMUN A LA GAMME -292723 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
855044 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
855045 - SUPPORT Plus d'informationsQuantité requise : 1 |
