Eclatés de véhicule - GILERA RUNNER 180 FXV 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

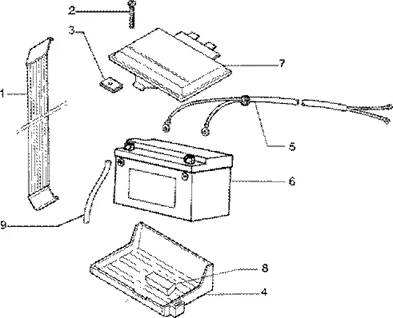

Connexions électriques : T53 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/660/Runner_180_FXV_2T_1998-2005_T53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/7/img/65677.jpg)
1 |
COURROIE/SANGLE DE BATTERIE ORIGINE PIAGGIO COMMUN A LA GAMME -090854- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
2 |
VIS AUTOTARAUDEUSE (4.2X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -015911- Plus d'informationsQuantité requise : 1 |
||||||
5 |
294958 - FAISCEAU CABLES 125 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
497629 - BATTERIE 12V 11A 100CCA (PB10L-B) Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
575951 - COUVERCLE BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/7/7/0/img/80770.jpg)
7 |
COUVERCLE DE BATTERIE ORIGINE PIAGGIO GILERA 50-125 RUNNER 1998>2005 -576170- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
577586 - COUVERCLE BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/0/img/66300.JPG)
8 |
TAMPON DE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME -297446- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
582520 - RENIFLARD Plus d'informationsQuantité requise : 1 |
