Eclatés de véhicule - GILERA RUNNER 180 FXV 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

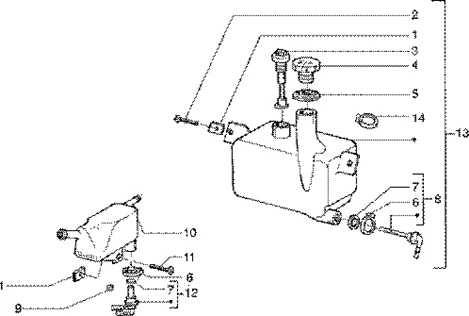

Châssis : T35 RESERVOIR D'HUILE MIX-DEGAZEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/660/Runner_180_FXV_2T_1998-2005_T35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
1 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/9/6/img/67096.jpg)
3 |
JAUGE A HUILE ORIGINE PIAGGIO 50 TYPHOON 1997>2009, NRG 1999>2004, FLY 2005>, ZIP 1997>, VESPA PRIMAVERA 2013>, VESPA SPRINT 2014>/GILERA 50 RUNNER 1999>2004 -573458- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/2/img/66042.jpg)
4 |
BOUCHON RESERVOIR HUILE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50CC 2T -259829- Plus d'informationsQuantité requise : 1 |
||||||
5 |
573085 - CUVETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
6 |
COLLIER SERRAGE ROBINET D'ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -879888- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
7 |
JOINT DE ROBINET ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -196868- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/5/img/67105.jpg)
8 |
RACCORD RESERVOIR HUILE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 2T -574362- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
9 |
SILENTBLOC ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCCOOTER -258904- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
577871 - DEGAZEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
11 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/7/4/img/81374.jpg)
12 |
ROBINET ESSENCE ORIGINE PIAGGIO GILERA 50-125 RUNNER 1998>2005 -577881- Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
574641 - RESERVOIR HUILE FX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
14 |
COLLIER DE SERRAGE DURITE (7X10) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002903- Plus d'informationsQuantité requise : 1 |
