Eclatés de véhicule - APRILIA RS 50 1996-1998
Moteur : 29.36 CULASSE - PISTON

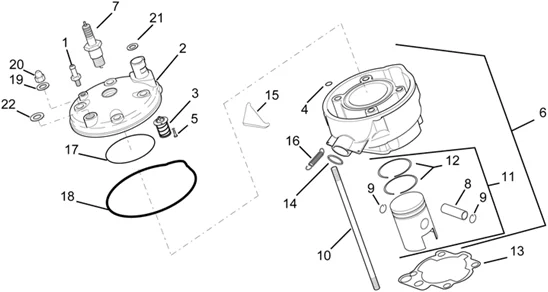

29.36 CULASSE - PISTON
![]() 1 |
AP8206618 - RACCORD POUR TUYAU EAU Plus d'informationsQuantité requise : 0 |
||||||
![]() 2 |
Culasse grise |
||||||
![]() 2 |
Culasse grise |
||||||
![]() 3 |
AP8206383 - THERMOSTAT Plus d'informationsQuantité requise : 0 |
||||||
![]() 4 |
JOINT TORIQUE (7.65X1.78) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8502655- Plus d'informationsQuantité requise : 0 |
||||||
![]() 5 |
VIS CRUCIFORME (4X10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8502559- Plus d'informationsQuantité requise : 0 |
||||||
![]() 6 |
Cylindre av.piston |
||||||
![]() 6 |
AP8206404 - CYLINDRE AV.PISTON * Plus d'informationsQuantité requise : 0 |
||||||
![]() 6 |
AP8206760 - CYLINDRE EN FONTE AVEC PISTON Plus d'informationsQuantité requise : 0 |
||||||
![]() 7 |
BOUGIE BR8ES ORIGINE PIAGGIO APRILIA 50-125 RS/MOTO- GUZZI 750 BREVA, NEVADA -861612- Plus d'informationsQuantité requise : 0 |
||||||
![]() 8 |
AP8502846 - AXE Plus d'informationsQuantité requise : 0 |
||||||
![]() 9 |
AP8206019 - BAGUE DE BUTEE Plus d'informationsQuantité requise : 0 |
||||||
![]() 10 |
AP8508553 - VIS SANS T?TE Plus d'informationsQuantité requise : 0 |
||||||
![]() 11 |
AP8206250 - PISTON CPL. Plus d'informationsQuantité requise : 0 |
||||||
![]() 11 |
AP8206955 - PISTON CPL. Plus d'informationsQuantité requise : 0 |
||||||
![]() 11 |
AP8206956 - PISTON CPL. Plus d'informationsQuantité requise : 0 |
||||||
![]() 11 |
AP8206957 - PISTON CPL. Plus d'informationsQuantité requise : 0 |
||||||
![]() 12 |
AP8206952 - SEGMENTS - SERIE Plus d'informationsQuantité requise : 0 |
||||||
![]() 12 |
AP8206953 - SEGMENTS MAJ. Plus d'informationsQuantité requise : 0 |
||||||
![]() 12 |
AP8206954 - SEGMENTS MAJ. Plus d'informationsQuantité requise : 0 |
||||||
![]() 13 |
AP8206292 - JOINT BASE CYLINDRE Plus d'informationsQuantité requise : 0 |
||||||
![]() 14 |
JOINT TORIQUE (28.2X2.6) ORIGINE APRILIA 50 RS, RX, SX 2004< -AP8502668 Plus d'informationsQuantité requise : 0 |
||||||
![]() 15 |
AP8508882 - PLAQUE FIX.RESSORTS Plus d'informationsQuantité requise : 0 |
||||||
![]() 16 |
AP8507839 - RESS.FIX.TUY.ECHAP. Plus d'informationsQuantité requise : 0 |
||||||
![]() 17 |
JOINT TORIQUE DE CULASSE (51.5X1.78) ORIGINE APRILIA 50 RS 1993>2005 -AP8206285- Plus d'informationsQuantité requise : 0 |
||||||
![]() 18 |
JOINT TORIQUE DE CULASSE ORIGINE PIAGGIO APRILIA 50 CLASSIC, AF1, EUROPA, PEGASO, RS 2005< -AP8206286- Plus d'informationsQuantité requise : 0 |
||||||
![]() 19 |
RONDELLE PLATE (7.4X14X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8206721- Plus d'informationsQuantité requise : 0 |
||||||
![]() 20 |
AP8206427 - ECROU AUTOBL.BORGNE Plus d'informationsQuantité requise : 0 |
||||||
![]() 21 |
JOINT VIS HUILE (8X14) ORIGINE PIAGGIO APRILIA 50 RS, SX, RX, MX, EUROPA, CLASSIC -AP8502759- Plus d'informationsQuantité requise : 0 |
||||||
![]() 22 |
AP8508560 - JOINT VIS Plus d'informationsQuantité requise : 0 |
