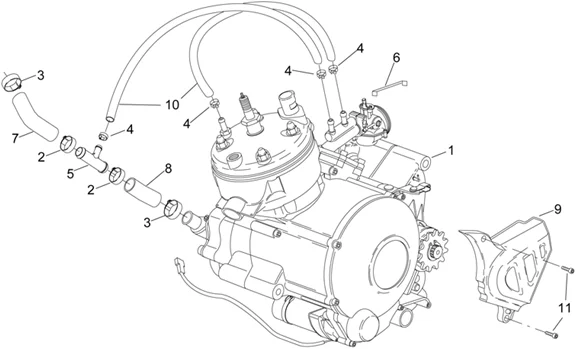

Moteur : 29.22 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_29.22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
2 |
COLLIER CLIC (23,5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101743- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
3 |
COLLIER CLIC DURITE (23,5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8101927- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
4 |
AP8102239 - COLLIER CLIC Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/1/img/56881.jpg)
5 |
RACCORD EN "T" REFROIDISSEMENT ORIGINE PIAGGIO APRILIA 50 CLASSIC, RS, SX, RX -AP8220415- Plus d'informationsQuantité requise : 1 |
||||||
7 |
AP8220280 - TUBE POMPE RADIATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8220450 - TUYAU A TEXTURE EN CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/0/img/71850.jpg)
11 |
VIS BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150280- Plus d'informationsQuantité requise : 2 |
