Eclatés de véhicule - DERBI RAMBLA 125 Rambla 125-250 E3 2008-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

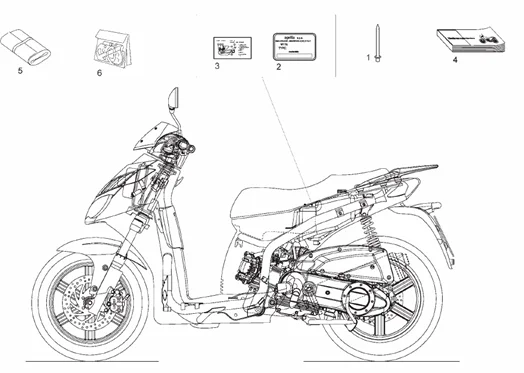

Vues éclatées : 43 MANUEL INSTR.I-D-F-E-UK-NL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1109/Rambla_125-250_E3_2008-2009_(EMEA)_43.png)
1 |
AP8201457 - RIVET Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
860734 - MONOGRAMME Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
860733 - PLAQUE - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
865262 - MANUEL INSTRUCTIONS Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
864934 - MANUAL DE INSTRUCC.RAM125 - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
853303 - TROUSSE A OUTILS Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
860736 - DECALCO Plus d'informationsQuantité requise : 1 |
