Eclatés de véhicule - APRILIA QUASAR 180 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

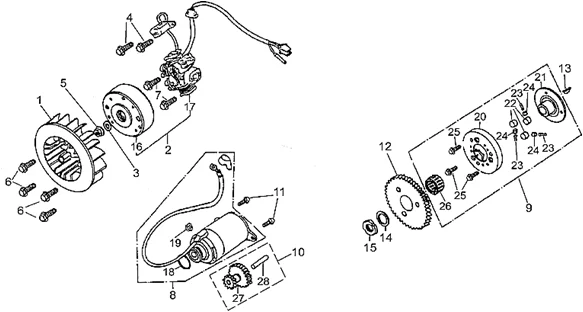

Moteur : 29.35 VOLANT-DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/310/Quasar_180_2003_29.35.PNG)
3 |
AP8911063 - ROSETTA PIANA 12X25X2,3 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8910377 - DADO FLANG.M12 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8910828 - INGRANAGGIO INTERMEDIO Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
AP8910825 - RULLO Plus d'informationsQuantité requise : 3 |
||||||
|
24 |
AP8910826 - FERMO Plus d'informationsQuantité requise : 3 |
||||||
|
28 |
AP8911124 - ALBERINO Plus d'informationsQuantité requise : 1 |
Tous les éclatés de ce véhicule
-
