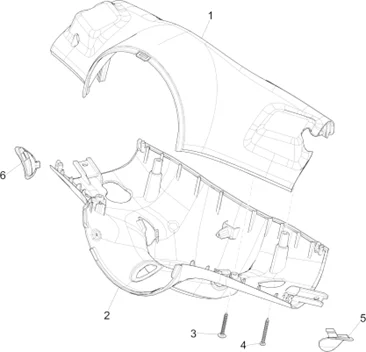

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1261/_Primavera_50_4T_3V_ie_ABS_E5_Mickey_Mouse_2023__03.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/8/7/img/91387.jpg)
1 |
COUVRE GUIDON SUPERIEUR ORIGINE PIAGGIO 50-125 VESPA PRIMAVERA 2013> NOIR 98/A -67364600XN2 Plus d'informationsQuantité requise : 1 |
||||||
2 |
1B005550000R7 - LOWER HANDLEBAR COVER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
3 |
VIS CARENAGE/CARROSSERIE ORIGINE PIGGIO COMMUN A LA GAMME -259577 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
4 |
VIS AUTOTARAUDEUSE (4X35) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -265636 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
67541300R7 - COUVERCLE DRT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
67543100R7 - COUVERCLE GAU. Plus d'informationsQuantité requise : 1 |
