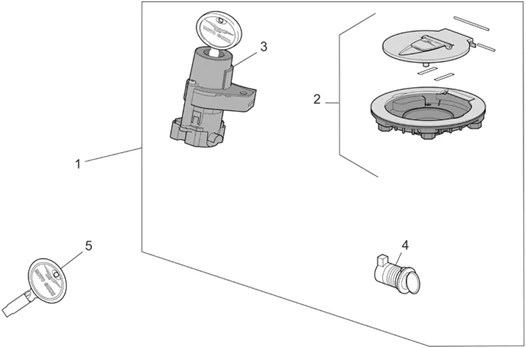

Chassis : 33.38 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_33.38.PNG)
Rechercher
1 |
887467 - (*)KIT SERRATURE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU06103900 - TAPPO SERBATOIO CARBURANTE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU06782500 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU05466830 - SERRURE SELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/4/4/1/img/100441.jpg)
5 |
EBAUCHE DE CLE ORIGINE PIAGGIO MOTO-GUZZI GRISO, BREVA, NORGE, STELVIO, SPORT -977918- Plus d'informationsQuantité requise : 1 |
