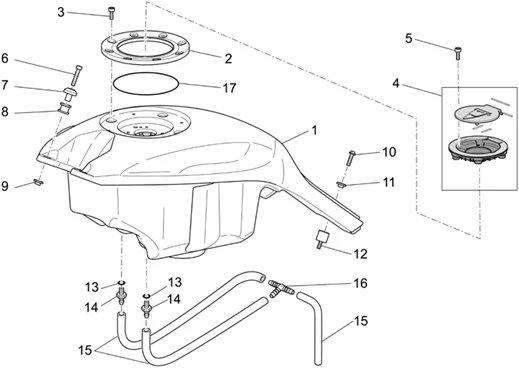

Chassis : 33.14 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/491/Griso_V_IE_850_2006-2007_33.14.PNG)
1 |
GU06100200 - RESERVOIR BRUT Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
GU06100204 - RESERVOIR ESS. JAUNE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU06102300 - EMBOUT POUR BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU98710215 - VIS M5X15 Plus d'informationsQuantité requise : 8 |
||||||
|
4 |
GU06103900 - TAPPO SERBATOIO CARBURANTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/7/img/133207.jpg)
5 |
VIS BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98692216- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
6 |
VIS BTR (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680340- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
GU06107100 - DOUILLE ATTACHE RESERVOIR Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
8 |
CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LAGAMME -AP8144328- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
9 |
DOUILLE EN T (6.1X10X5.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121075- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280- Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
GU06704901 - "DOUILLE EN ""T"" * Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
12 |
SILENTBLOC ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU93222023- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
13 |
JOINT TORIQUE DE CANALISATION ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -AP8120965- Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU30103730 - RACCORD Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
896570 - TUYAU Plus d'informationsQuantité requise : 3 |
||||||
|
16 |
AP8104666 - RACCORD 3 VOIES Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
977062 - ANELLO OR 164,69X3,53 Plus d'informationsQuantité requise : 1 |
