Eclatés de véhicule - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

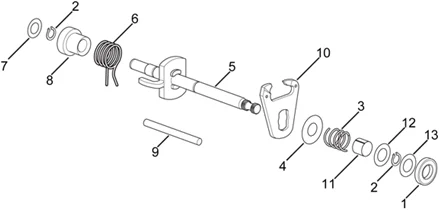

Moteur : 29.45 SELECTEUR BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_29.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/7/4/img/61074.jpg)
1 |
AP8509178 - JOINT SPI Plus d'informationsQuantité requise : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/1/4/img/55814.jpg)
2 |
AP8206358 - BAGUE SEEGER Plus d'informationsQuantité requise : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/0/2/img/55802.jpg)
3 |
RESSORT RETOUR FOURCHETTE ARBRE DE SELECTEUR ORIGINE APRILIA 50 RS, RX, PEGASO 2005< -AP8206331- Plus d'informationsQuantité requise : 0 |
||||||
4 |
AP8502520 - RONDELLE Plus d'informationsQuantité requise : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/9/5/img/55795.jpg)
5 |
AXE DE SELECTEUR ORIGINE PIAGGIO APRILIA 50 RX 1991>1994, RS 1993>1995, PEGASO 1992>1994, EUROPA 1991>1992, CLASSIC 1992>1999, AF1 1991>1992 -AP8206319- Plus d'informationsQuantité requise : 0 |
||||||
|
5 |
AP8206437 - ARBRE SELECTEUR Plus d'informationsQuantité requise : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/1/9/img/61019.jpg)
6 |
AP8502356 - RES. RAP. LEVIER VIT. Plus d'informationsQuantité requise : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/6/4/img/55764.jpg)
7 |
RONDELLE ACIER BOITE DE VITESSE BLEU (10X16) ORIGINE PIAGGIO COMMUN A LA GAMME 50 A BOITE APRILIA -AP8206269- Plus d'informationsQuantité requise : 0 |
||||||
|
8 |
AP8206332 - DOUILLE RESSORT SELECT. Plus d'informationsQuantité requise : 0 |
||||||
|
10 |
AP8501972 - FOURCHETTE SELECTEUR + AXES Plus d'informationsQuantité requise : 0 |
||||||
|
11 |
AP8502448 - ENTRETOISE Plus d'informationsQuantité requise : 0 |
||||||
|
12 |
AP8206344 - RONDELLE ACIER BLEU Plus d'informationsQuantité requise : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/6/5/img/55765.jpg)
13 |
RONDELLE AXE DE SELECTEUR (12X17) ORIGINE PIAGGIO APRILIA 50 RX, SX, RS, AF1, CLASSIC, EUROPA, TUONO -AP8206270- Plus d'informationsQuantité requise : 0 |
