Eclatés de véhicule - APRILIA ATLANTIC 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

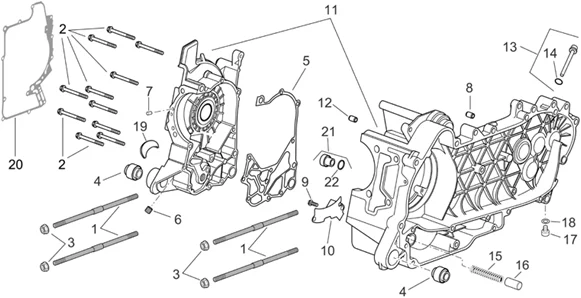

Moteur : 29.43 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/239/Atlantic_125_2006-2008_29.43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/5/img/109025.jpg)
1 |
GOUJON DE CYLINDRE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 250-300 CC -1A003628R- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/4/img/70654.jpg)
1 |
GOUJON DE CYLINDRE (8X151) ORIGINE PIAGGIO COMMUN A LA GAMME 125-250 MOTEUR LEADER -1A003629R- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
2 |
VIS BRIDE TH (6X60) ORIGINE PIAGGIO COMMUN A LA GAMME -B016425- Plus d'informationsQuantité requise : 11 |
|||||||||
3 |
832870 - ECROU Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
4 |
SILENTBLOC DE CARTER MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -486081- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/3/img/70573.jpg)
5 |
JOINT DE CARTER MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -875111- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
6 |
BOUCHON (M12X1.5X11) ORIGINE PIAGGIO COMMUN A LA GAMME -B015433- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
7 |
BUSE CARTER MOREUR ORIGINE PIAGGIO COMMUN A LA GAMME -484034- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
8 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/3/img/65443.jpg)
9 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -018575- Plus d'informationsQuantité requise : 1 |
|||||||||
|
10 |
876657 - TTLE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/8/img/139378.jpg)
11 |
CARTER MOTEUR ORIGINE PIAGGIO 250-300 MP3, X7, VESPA GTS/GILERA 250-300 NEXUS (CAT-1) -1A0117820A- Plus d'informationsQuantité requise : 1 |
|||||||||
|
11 |
CARTER MOTEUR ORIGINE PIAGGIO 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002- Plus d'informationsQuantité requise : 1 |
|||||||||
|
11 |
1A0009740B - CARTER COMPLET 2 Plus d'informationsQuantité requise : 1 |
|||||||||
|
11 |
CARTER MOTEUR ORIGINE PIAGGIO 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-1 DIA 32,959/32,965 MM) -CM1485205001- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
12 |
PION DE CENTRAGE (7,5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -277916- Plus d'informationsQuantité requise : 1 |
|||||||||
|
13 |
AP8550586 - TIGE NIVEAU HUILE COMPL. Plus d'informationsQuantité requise : 1 |
|||||||||
|
14 |
AP8550334 - JOINT TORIQUE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
17 |
VIS BTR (8X12) ORIGINE PIAGGIO COMMUN A LA GAMME -269755- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
18 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/9/img/69149.jpg)
19 |
RONDELLE ARRET CARTER MOTEUR ORIGINE PIAGGIO 125-200-250 2013< -840489- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/1/img/69371.jpg)
21 |
SUPPORT/INSERT FILTRE A HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -845861- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/8/img/66388.jpg)
22 |
JOINT TORIQUE INSERT PORTE FILTRE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -431065- Plus d'informationsQuantité requise : 1 |
|||||||||
