Eclatés de véhicule - APRILIA ATLANTIC 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

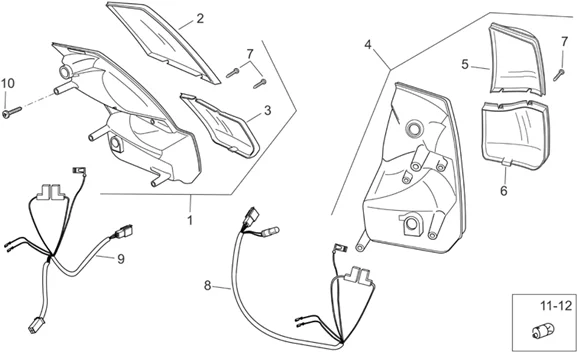

Chassis : 28.37 FEU ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/239/Atlantic_125_2006-2008_28.37.PNG)
1 |
AP8127259 - FEU ARRIERE D (ABOLI SANS REMPLACEMENT) Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/1/4/2/img/48142.jpg)
2 |
CABOCHON DE CLIGNOTANT ARRIERE DROIT ORIGINE PIAGGIO 125-250-400-500 ATLANTIC -AP8127445- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/5/2/5/img/38525.jpg)
3 |
CABOCHON DE FEU ARRIERE DROIT ORIGINE PIAGGIO 125-250-300-400-500 ATLANTIC -642133- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/8/1/img/48081.jpg)
4 |
FEU ARRIERE GAUCHE APRILIA 125-250-400-500 ATLANTIC 2006>2008 -AP8127316- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CABOCHON DE CLIGNOTANT ARRIERE GAUCHE ORIGINE PIAGGIO 125-250-400-500 ATLANTIC -AP8127447- Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
CABOCHON DE FEU ARRIERE GAUCHE ORIGINE PIAGGIO 125-250-300-400-500 ATLANTIC -642135- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
642143 - VIS AUTORANDEUSE Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
AP8127392 - CABLAGE FEU AR G Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8127249 - CABLAGE FEU AR D Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
VIS PARKER (5X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152329- Plus d'informationsQuantité requise : 6 |
||||||
|
11 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8127489- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
12 |
AMPOULE/LAMPE 12V 21/5W BAY15D / P21/5 ORIGINE PIAGGIO COMMUN A LA GAMME -129953- Plus d'informationsQuantité requise : 2 |
