Eclatés de véhicule - APRILIA SR 150 Aprilia 4T-3V (EMEA-LATAM) 2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

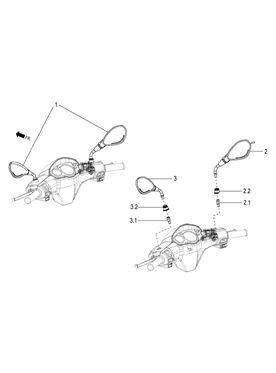

Cadre : 02.10 RÃƑ©TROVISEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/931/Aprilia_SR_150_4T-3V_(EMEA-LATAM)_2018_02.10.png)
1 |
CM281203 - COUPLE RETROVISEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/4/2/img/152842.jpg)
2 |
RETROVISEUR DROIT ORIGINE PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD, SXR 2018> -CM281204 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CM281201 - MIROIR RETROVISEUR DTE Plus d'informationsQuantité requise : 1 |
||||||
|
2.1 |
1B003550 - SUPPORT RETROVISEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/4/3/img/152843.jpg)
2.2 |
JOINT RETROVISEUR DROIT ORIGINE PIAGGIO 50 TYPHOON 2018>2020/ APRILIA 50 SR, SXR 2018> -1B003798 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/4/4/img/152844.jpg)
3 |
RETROVISEUR GAUCHE ORIGINE PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD, SXR 2018> -CM281205 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
CM281202 - MIROIR RETROVISEUR GCHE Plus d'informationsQuantité requise : 1 |
||||||
|
3.1 |
1B003550 - SUPPORT RETROVISEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/4/5/img/152845.jpg)
3.2 |
JOINT RETROVISEUR GAUCHE ORIGINE PIAGGIO 50 TYPHOON 2018>2020/ APRILIA 50 SR, SXR 2018> -1B003799 Plus d'informationsQuantité requise : 1 |
