Eclatés de véhicule - APRILIA SR 150 Aprilia 4T-3V (EMEA-LATAM) 2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

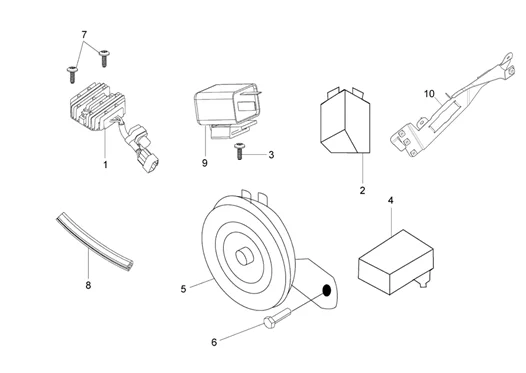

Cadre : 02.24 REMOTE CONTROL SWITCHES - CLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/931/Aprilia_SR_150_4T-3V_(EMEA-LATAM)_2018_02.24.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/1/0/img/178710.jpg)
1 |
REGULATEUR DE TENSION ORIGINE PIAGGIO 50 SXR APRILIA 2021>50 ZIP 4T 2018> PRIMAVERA 50 4T>2017 -1A017429 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
REGULATEUR DE TENSION ORIGINE PIAGGIO 50 SXR APRILIA 2021>50 ZIP 4T 2018> PRIMAVERA 50 4T>2017 -1A017429 Plus d'informationsQuantité requise : 1 |
||||||
2 |
1D003013 - FLASHING DEVICE COMPLETE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
3 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
58250R - DISPOSITIF DU DEMARR. EL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/5/4/img/164254.jpg)
5 |
AVERTISSEUR/KLAXON ORIGINE APRILIA 50 SXR 2021> -CM087614 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
6 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
7 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -018639 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
CM023903 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/1/0/4/img/166104.jpg)
9 |
RELAIS 12V-70A ORIGINE PIAGGIO 50 TYPHOON 2018>/ SR, SXR APRILIA 2018> -680154 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
1B005473 - PATTE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
1B003539 - PATTE Plus d'informationsQuantité requise : 1 |
