Vehicle Exploded View - VESPA VESPA SPRINT 125 4T 3V IGET ABS E4 2016-2018 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

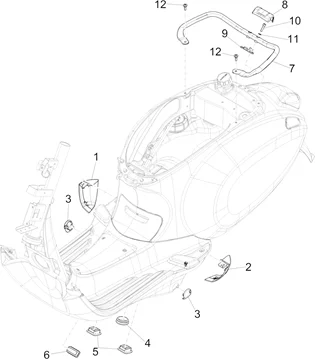

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/784/Vespa_Sprint_125_4T_3V_IGET_ABS_E4_2016-2018_EMEA_02.32.png)
1 |
67362700HT - COUVERCLE SPOILER D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/5/0/img/91350.jpg)
1 |
673627 - COUVERTURE SPOILER DR More informationQuantity required : 1 |
||||||
|
1 |
67362700DQ - COUVERTURE SPOILER DR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/5/3/img/91353.jpg)
1 |
67362700BR - COUVERTURE SPOILER DR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/5/8/img/91358.jpg)
1 |
RIGHT SPOILER COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT RED 894 -67362700R7- More informationQuantity required : 1 |
||||||
|
1 |
67362700TA - COUVERCLE SPOILER D. More informationQuantity required : 1 |
||||||
|
1 |
67362700VU - COUVERCLE SPOILER DR More informationQuantity required : 1 |
||||||
|
1 |
67362700L7 - COUVERTURE SPOILER DR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/5/1/img/91351.jpg)
1 |
RIGHT SPOILER COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT BLACK 94 -6736270090- More informationQuantity required : 1 |
||||||
|
1 |
67362700L5 - COUVERTURE SPOILER DR More informationQuantity required : 1 |
||||||
|
1 |
RIGHT SPOILER COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT GRIS 707/C -67362700HQ- More informationQuantity required : 1 |
||||||
|
2 |
1B001011000HT - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/8/9/img/75789.jpg)
2 |
1B001011000BR - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
2 |
1B001011000DQ - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
2 |
1B001011000HQ - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
2 |
1B00101100090 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/8/6/img/75786.jpg)
2 |
1B001011 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
2 |
1B001011000TA - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
2 |
1B001011000VU - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
2 |
1B001011000L7 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/9/7/img/75797.jpg)
2 |
1B001011000R7 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
2 |
1B001011000L5 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/0/4/4/img/92044.jpg)
3 |
SIDE SPOILER CAP "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -675662 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/7/img/78067.jpg)
4 |
299559 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/5/img/78065.jpg)
5 |
299557 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/3/0/img/75430.jpg)
6 |
1B000112 - BOUCHON More informationQuantity required : 1 |
||||||
|
7 |
1B001266 - POIGNEE SELLE More informationQuantity required : 1 |
||||||
|
8 |
1B001288 - COUVERCLE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/5/6/img/75856.jpg)
9 |
PASSENGER HANDLE COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 VESPA SPRINT -1B001310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/6/img/70656.jpg)
10 |
877289 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/4/2/img/77242.jpg)
11 |
269135 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201- More informationQuantity required : 2 |
