Vehicle Exploded View - VESPA VESPA S 50 4T 4V College 2008-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

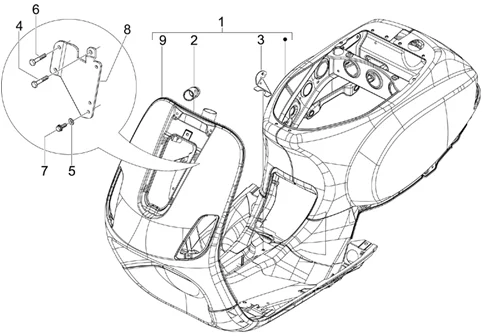

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/228/Vespa_S_50_4T_4V_College_2008-2012_02.01.PNG)
0 |
78120850NL - COQU More informationQuantity required : 1 |
|||||||||
|
1 |
7812085090 - COQUE More informationQuantity required : 1 |
|||||||||
|
1 |
78120850BR - COQUE More informationQuantity required : 1 |
|||||||||
|
1 |
FRAME - RAW -1B00478701- More informationQuantity required : 1 |
|||||||||
|
1 |
78120850EZ - COQUE More informationQuantity required : 1 |
|||||||||
|
1 |
FRAME - RAW -1B00478701- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
2 |
LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604- More informationQuantity required : 1 |
|||||||||
|
3 |
581051 - COLLIER More informationQuantity required : 1 |
|||||||||
|
4 |
018509 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/3/img/65683.jpg)
5 |
097734 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.JPG)
6 |
CM179301 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
6 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836- More informationQuantity required : 2 |
|||||||||
|
7 |
434541 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
7 |
B016777 - VIS More informationQuantity required : 3 |
|||||||||
|
8 |
654282 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/1/8/3/img/84183.jpg)
9 |
6221145 - TABLIER More informationQuantity required : 1 |
|||||||||
