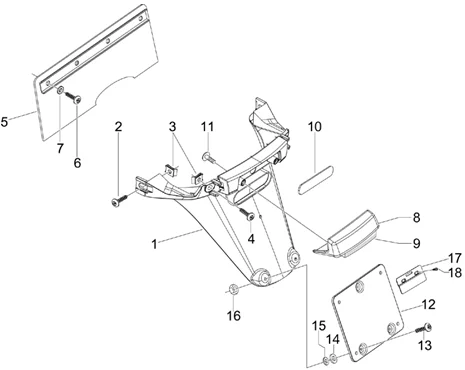

Vehicle Exploded View - VESPA VESPA S 125 4T ie E3 College 2009 VESPA

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
Couvercle arrière - Pare-boue
Search
MUDGUARD - REAR "PIAGGIO GENUINE PART" 50-125 VESPA-S -654261-

1
P2R reference P2R reference 88214
Maker reference Maker reference 654261

MUDGUARD - REAR "PIAGGIO GENUINE PART" 50-125 VESPA-S -654261-

More information

Quantity required : 1

6542610090 - BAVETTE AR

1
P2R reference P2R reference 88215
Maker reference Maker reference 6542610090
Replaced by référence Replaced by référence 88214

6542610090 - BAVETTE AR

More information

Quantity required : 1

65426100AH - BAVETTE AR

1
P2R reference P2R reference 88216
Maker reference Maker reference 65426100AH

65426100AH - BAVETTE AR

More information

Quantity required : 1

65426100AI - BAVETTE AR

1
P2R reference P2R reference 88217
Maker reference Maker reference 65426100AI

65426100AI - BAVETTE AR

More information

Quantity required : 1

65426100BR - BAVETTE AR

1
P2R reference P2R reference 88218
Maker reference Maker reference 65426100BR

65426100BR - BAVETTE AR

More information

Quantity required : 1

65426100DI - BAVETTE AR

1
P2R reference P2R reference 88219
Maker reference Maker reference 65426100DI

65426100DI - BAVETTE AR

More information

Quantity required : 1

65426100EZ - BAVETTE AR

1
P2R reference P2R reference 88220
Maker reference Maker reference 65426100EZ

65426100EZ - BAVETTE AR

More information

Quantity required : 1

65426100R7 - BAVETTE AR

1
P2R reference P2R reference 88222
Maker reference Maker reference 65426100R7

65426100R7 - BAVETTE AR

More information

Quantity required : 1

SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

2
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 2

CM179302 - VIS

2
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

CM179302 - VIS

More information

Quantity required : 2

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

3
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

4
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249

More information

Quantity required : 2

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201-

4
P2R reference P2R reference 73364
Maker reference Maker reference CM179201

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201-

More information

Quantity required : 2

623420 - PARE BOUE

5
P2R reference P2R reference 84825
Maker reference Maker reference 623420

623420 - PARE BOUE

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

6
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

More information

Quantity required : 4

013763 - PLAQUETTE S01376300

7
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

013763 - PLAQUETTE S01376300

More information

Quantity required : 3

654262 - COUVERCLE FEU AR

8
P2R reference P2R reference 88223
Maker reference Maker reference 654262

654262 - COUVERCLE FEU AR

More information

Quantity required : 1

NUMBER PLATE LIGHT COVER "PIAGGIO GENUINE PART" VESPA S 50-125 2007>2014 BLACK 94 -6542620090 -

8
P2R reference P2R reference 88224
Maker reference Maker reference 6542620090

NUMBER PLATE LIGHT COVER "PIAGGIO GENUINE PART" VESPA S 50-125 2007>2014 BLACK 94 -6542620090 -

More information

Quantity required : 1

65426200AH - COUVERCLE

8
P2R reference P2R reference 88225
Maker reference Maker reference 65426200AH

65426200AH - COUVERCLE

More information

Quantity required : 1

65426200AI - COUVERCLE

8
P2R reference P2R reference 88226
Maker reference Maker reference 65426200AI

65426200AI - COUVERCLE

More information

Quantity required : 1

65426200BR - COUVERCLE SPOILER DR

8
P2R reference P2R reference 88228
Maker reference Maker reference 65426200BR

65426200BR - COUVERCLE SPOILER DR

More information

Quantity required : 1

NUMBER PLATE LIGHT COVER "PIAGGIO GENUINE PART" VESPA S 50-125 2007>2014 BLUE 244/A -65426200DI -

8
P2R reference P2R reference 88230
Maker reference Maker reference 65426200DI

NUMBER PLATE LIGHT COVER "PIAGGIO GENUINE PART" VESPA S 50-125 2007>2014 BLUE 244/A -65426200DI -

More information

Quantity required : 1

65426200EZ - COUVERCLE

8
P2R reference P2R reference 88231
Maker reference Maker reference 65426200EZ

65426200EZ - COUVERCLE

More information

Quantity required : 1

65426200R7 - COUVERCLE

8
P2R reference P2R reference 88235
Maker reference Maker reference 65426200R7

65426200R7 - COUVERCLE

More information

Quantity required : 1

639335 - FEU AR

9
P2R reference P2R reference 85737
Maker reference Maker reference 639335

639335 - FEU AR

More information

Quantity required : 1

REAR REFLECTOR "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO RANGE -58233R5

10
P2R reference P2R reference 67253
Maker reference Maker reference 58233R5

REAR REFLECTOR "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO RANGE -58233R5

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372-

11
P2R reference P2R reference 63850
Maker reference Maker reference 0083725

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372-

More information

Quantity required : 2

LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584884-

12
P2R reference P2R reference 67322
Maker reference Maker reference 584884

LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584884-

More information

Quantity required : 1

015996 - VIS

13
P2R reference P2R reference 65408
Maker reference Maker reference 0159965

015996 - VIS

More information

Quantity required : 3

SCREW - (6x30) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -271891-

13
P2R reference P2R reference 66107
Maker reference Maker reference 271891

SCREW - (6X30) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -271891-

More information

Quantity required : 1

013763 - PLAQUETTE S01376300

14
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

013763 - PLAQUETTE S01376300

More information

Quantity required : 3

WASHER (4,2x7,6x0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404

15
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404

More information

Quantity required : 3

020104 - ECROU S02010400

16
P2R reference P2R reference 65459
Maker reference Maker reference 0201045

020104 - ECROU S02010400

More information

Quantity required : 3

NUMBER PLATE EXTENSION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584877-

17
P2R reference P2R reference 67321
Maker reference Maker reference 584877

NUMBER PLATE EXTENSION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584877-

More information

Quantity required : 2

268596 - VIS

18
P2R reference P2R reference 66074
Maker reference Maker reference 268596

268596 - VIS

More information

Quantity required : 4
