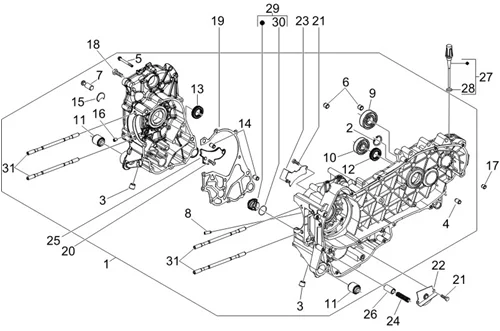

Vehicle Exploded View - VESPA VESPA S 125 4T E3 2007-2008

	P2R reference	73253
	Maker reference	CM1485205001

COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-1 DIA 32,959/32,965 MM) -CM1485205001-

	P2R reference	73254
	Maker reference	CM1485205002

COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002-

	P2R reference	72699
	Maker reference	B015959

CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959

	P2R reference	72673
	Maker reference	B015433

B015433 - PLUG VISSES

	P2R reference	66417
	Maker reference	431860

BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860-

	P2R reference	72705
	Maker reference	B016425

B016425 - VIS BRIDE

	P2R reference	72697
	Maker reference	B015957

CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957

	P2R reference	66643
	Maker reference	483785

483785 - PIVOT RESSORT DE BEQUILLE

	P2R reference	66654
	Maker reference	484034

484034 - GICLEUR

	P2R reference	68899
	Maker reference	83018R

BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R

	P2R reference	69082
	Maker reference	833701

BEARING FOR TRANSMISSION REDUCER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR -833701

	P2R reference	66704
	Maker reference	486081

SILENBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER -486081

	P2R reference	68775
	Maker reference	82878R

GASKET FOR DRIVING SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82878R -

	P2R reference	68805
	Maker reference	82898R

SEAL RING GASKET- FOR CRANKSHAFT(IGNITION SIDE) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -82898R-

	P2R reference	68775
	Maker reference	82878R

GASKET FOR DRIVING SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82878R -

	P2R reference	72696
	Maker reference	B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

	P2R reference	68805
	Maker reference	82898R

SEAL RING GASKET- FOR CRANKSHAFT(IGNITION SIDE) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -82898R-

	P2R reference	69149
	Maker reference	840489

840489 - DEFLECTEUR

	P2R reference	69323
	Maker reference	844582

844582 - GICLEUR CARTER

	P2R reference	66142
	Maker reference	277916

CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916-

	P2R reference	72705
	Maker reference	B016425

B016425 - VIS BRIDE

	P2R reference	70573
	Maker reference	875111

GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -875111

	P2R reference	109024
	Maker reference	1A003111

1A003111 - VIS M5X10

	P2R reference	109024
	Maker reference	0185755

1A003111 - VIS M5X10

	P2R reference	68890
	Maker reference	830061

830061 - VIS

	P2R reference	66640
	Maker reference	483767

483767 - PANNEAU INF!RIEURE

	P2R reference	66670
	Maker reference	485047

485047 - PANNEAU SUP!RIEURE

	P2R reference	66686
	Maker reference	485655

485655 - RESSORT

	P2R reference	70621
	Maker reference	876657

876657 - TTLE

	P2R reference	158678
	Maker reference	828766

828766 - PLAQUETTE

	P2R reference	68864
	Maker reference	829661

829661 - VOLET HUILE

	P2R reference	68991
	Maker reference	832130

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130-

	P2R reference	68643
	Maker reference	827085

827085 - JOINT

	P2R reference	69371
	Maker reference	845861

OIL FILTER DOOR INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -845861-

	P2R reference	66388
	Maker reference	431065

O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -431065-

	P2R reference	66357
	Maker reference	411295

411295 - GOUJON
