Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 2T NO ABS E2-E3 2013-2017 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

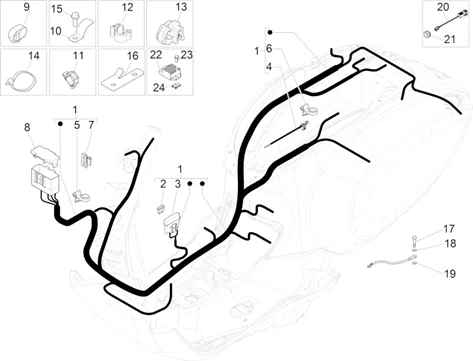

Circuit électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1260/Vespa_Primavera_50_2T_NO_ABS_E2-E3_2013-2017_EMEA_06.08.png)
1 |
1D001611 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
1D001573 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
1D000731 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
1D000882 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
1D000515 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
1D000731 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
2 |
252945 - FUSIBLE 7,5A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
2 |
292507 - FUSIBLE 10A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/1/img/66241.jpg)
3 |
290404 - COUVERCLE More informationQuantity required : 1 |
||||||
|
4 |
657229 - COLLIER More informationQuantity required : 1 |
||||||
|
5 |
640879 - COLLIER More informationQuantity required : 3 |
||||||
|
6 |
641764 - COLLIER More informationQuantity required : 2 |
||||||
|
7 |
584002 - CLIP More informationQuantity required : 2 |
||||||
|
8 |
1D000563 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
9 |
CM006905 - RESSOT More informationQuantity required : 2 |
||||||
|
10 |
1D000071 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
11 |
CM006903 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
12 |
CM013202 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
13 |
CM013203 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
14 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
15 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
16 |
1D000228 - ETRIER More informationQuantity required : 1 |
||||||
|
17 |
641204 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
18 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
19 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
|
20 |
1D002753 - PRISE USB More informationQuantity required : 1 |
||||||
|
21 |
1B001591 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/6/1/6/img/37616.jpg)
22 |
1D000298 - DISPOSITIF More informationQuantity required : 1 |
||||||
|
23 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
24 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
