Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 E5+ Officina 8 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

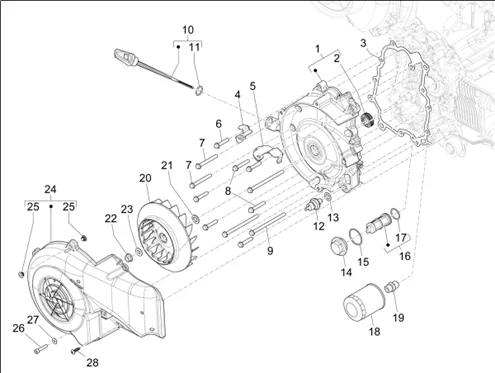

Moteur : 01.23 COUVERCLE VOLANT MAGNETIQUE - FILTRE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1324/Vespa_Primavera_125_E5_Officina_8_2025_EMEA_01.23.png)
1 |
8798545 - COUVERCLE DE PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/0/4/img/139604.jpg)
2 |
1A005835 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/2/6/7/img/93267.jpg)
3 |
877671 - JOINT CARTER More informationQuantity required : 1 |
||||||
|
4 |
1B007876 - REAR SUPPORT More informationQuantity required : 1 |
||||||
|
5 |
1B007877 - FRONT SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
6 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/1/img/72721.jpg)
7 |
B016775 - VIS M6X50 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
8 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/2/img/72722.jpg)
9 |
B016776 - VIS M6X90 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/1/7/img/75317.jpg)
10 |
1A000621 - JAUGE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
11 |
1A009397 - JOINT "OR" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
12 |
SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/3/8/3/img/151383.jpg)
13 |
1A011500 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/9/img/68589.jpg)
14 |
OIL FILTER PLUG "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -826165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
15 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO -285536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/8/4/img/72684.jpg)
16 |
B015454 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
17 |
OIL FILTER GASKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO -288474 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
18 |
FILTRE A HUILE MAXISCOOTER ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS -1A022356 More informationQuantity required : 1 |
||||||
|
19 |
B015455 - BOULON FILTRE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/5/0/img/75350.jpg)
20 |
1A001379 - VENTILATEUR More informationQuantity required : 1 |
||||||
|
21 |
B015807 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/6/img/70536.jpg)
22 |
874557 - ECROU BRIDE More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
|
24 |
1A025634 - COMPLETE CONVEYOR FLYWHEEL SIDE More informationQuantity required : 1 |
||||||
|
25 |
B015908 - BAGUE More informationQuantity required : 6 |
||||||
|
26 |
1A001680 - BOULON More informationQuantity required : 3 |
||||||
|
27 |
828583 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
28 |
CM179101 - VIS More informationQuantity required : 2 |
