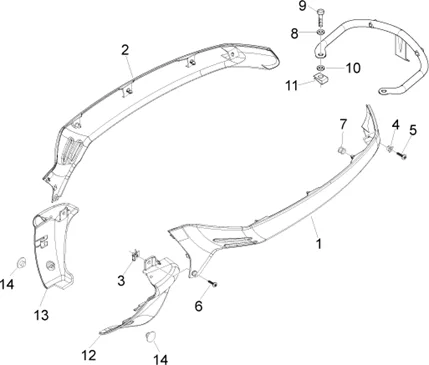

Vehicle Exploded View - VESPA VESPA LXV 125 4T 2V ie NOABS E3 2010-2013 (EMEA)

	P2R reference	84329
	Maker reference	62212740VG

REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 50-125 VESPA LX GREEN 305/A -62212740VG-

	P2R reference	84321
	Maker reference	62212740M5

62212740M5 - TAPIS CENTRAL

	P2R reference	84299
	Maker reference	6221274

6221274 - TAPIS CENTRAL

	P2R reference	84322
	Maker reference	62212740M9

62212740M9 - TAPIS CENTRAL LX

	P2R reference	84320
	Maker reference	62212740M4

REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 50-125 VESPA LX, LXV IVORY 552 -62212740M4-

	P2R reference	84332
	Maker reference	62212740YR1

62212740YR1 - CARENAGE GAUCHE

	P2R reference	84345
	Maker reference	6221284

REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 50-125 VESPA LX RAW TO BE PAINT -6221284-

	P2R reference	84375
	Maker reference	62212840VG

REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 50-125 VESPA LX GREEN 305/A -62212840VG-

	P2R reference	84367
	Maker reference	62212840M5

62212840M5 - CARENAGE DROIT

	P2R reference	84368
	Maker reference	62212840M9

62212840M9 - CARENAGE DROIT

	P2R reference	84366
	Maker reference	62212840M4

62212840M4 - CARENAGE DROIT

	P2R reference	84378
	Maker reference	62212840YR1

62212840YR1 - CARENAGE DROIT

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	65832
	Maker reference	199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

	P2R reference	65850
	Maker reference	1B000888

SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888-

	P2R reference	65345
	Maker reference	0125335

012533 - RONDELLE

	P2R reference	67749
	Maker reference	623920

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -623920-

	P2R reference	65664
	Maker reference	0783075

078307 - RONDELLE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	84423
	Maker reference	62212940YR1

62212940YR1 - COUVERTURE SPOILER GAU.

	P2R reference	84411
	Maker reference	62212940M4

62212940M4 - COUVERTURE SPOILER GAU.

	P2R reference	84388
	Maker reference	6221294

6221294 - COUVERTURE SPOILER GAU.

	P2R reference	84420
	Maker reference	62212940VG

62212940VG - ZOUVERTURE SPOILER GAU.

	P2R reference	84412
	Maker reference	62212940M5

62212940M5 - COUVERTURE SPOILER GAU.

	P2R reference	84413
	Maker reference	62212940M9

62212940M9 - COUVERTURE SPOILER GAU.

	P2R reference	84467
	Maker reference	62213040VG

62213040VG - COUVERTURE SPOILER DR

	P2R reference	84460
	Maker reference	62213040M9

62213040M9 - COUVERTURE SPOILER DR

	P2R reference	109264
	Maker reference	6221304

5A000086 - COUVERTURE SPOILER DR

	P2R reference	84459
	Maker reference	62213040M5

62213040M5 - COUVERTURE SPOILER DR

	P2R reference	84458
	Maker reference	62213040M4

62213040M4 - COUVERTURE SPOILER DR

	P2R reference	84470
	Maker reference	62213040YR1

62213040YR1 - COUVERTURE SPOILER DR

	P2R reference	109264
	Maker reference	5A000086

5A000086 - COUVERTURE SPOILER DR

	P2R reference	83684
	Maker reference	620556

620556 - BOUCHON
