Vehicle Exploded View - VESPA VESPA LX 50 4T 1998-2005 VESPA

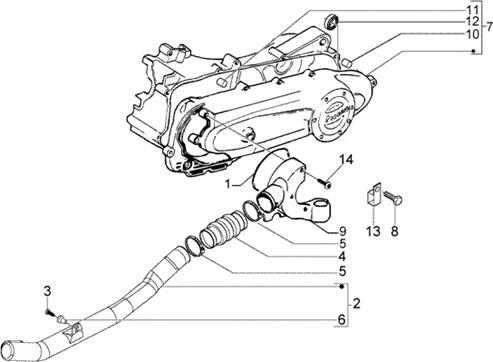

Moteur : T12 COUVERCLE TRANSMISSION
Couvercle transmission
Search
435251 - JOINT

1
P2R reference P2R reference 66470
Maker reference Maker reference 435251

435251 - JOINT

More information

Quantity required : 1
COOLING PIPE ON TRANSMISSION HOUSING "PIAGGIO GENUINE PARTS" VESPA 50-125 LX, 125 VESPA-S, ET4 -576267-

2
P2R reference P2R reference 80810
Maker reference Maker reference 576267

COOLING PIPE ON TRANSMISSION HOUSING "PIAGGIO GENUINE PARTS" VESPA 50-125 LX, 125 VESPA-S, ET4 -576267-

More information

Quantity required : 1
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

3
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

More information

Quantity required : 1
TRANSMISSION HOUSING AIR INTAKE SLEEVE "PIAGGIO GENUINE PART" PIAGGIO 50-125 FLY, VESPA LX, VESPA-S -298548-

4
P2R reference P2R reference 66303
Maker reference Maker reference 298548

TRANSMISSION HOUSING AIR INTAKE SLEEVE "PIAGGIO GENUINE PART" PIAGGIO 50-125 FLY, VESPA LX, VESPA-S -298548-

More information

Quantity required : 1
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

5
P2R reference P2R reference 65742
Maker reference Maker reference 145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

More information

Quantity required : 2
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

6
P2R reference P2R reference 65832
Maker reference Maker reference 199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

More information

Quantity required : 1
TRANSMISSION ASSY "PIAGGIO GENUINE PART" PIAGGIO -969211-.

7
P2R reference P2R reference 94044
Maker reference Maker reference 969211

TRANSMISSION ASSY "PIAGGIO GENUINE PART" PIAGGIO -969211-.

More information

Quantity required : 1
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792-

8
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792-

More information

Quantity required : 10
COOLING COVER FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, VESPA-S -969804-

9
P2R reference P2R reference 70994
Maker reference Maker reference 969804

COOLING COVER FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, VESPA-S -969804-

More information

Quantity required : 1
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

10
P2R reference P2R reference 72696
Maker reference Maker reference B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

More information

Quantity required : 2
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860-

11
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860-

More information

Quantity required : 1
BEARING FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82521R-

12
P2R reference P2R reference 68524
Maker reference Maker reference 82521R

BEARING FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82521R-

More information

Quantity required : 1
482291 - COLLIER

13
P2R reference P2R reference 66610
Maker reference Maker reference 482291

482291 - COLLIER

More information

Quantity required : 1
SCREW - FOR VARIATOR COOLING COVER "PIAGGIO GENUINE PART" GILERA RUNNER / PIAGGIO NRG, TYPHOON, ZIP/ VESPA ET4, LX , S ,PRIMAVERA, SPRINT -435295-

14
P2R reference P2R reference 66471
Maker reference Maker reference 435295

SCREW - FOR VARIATOR COOLING COVER "PIAGGIO GENUINE PART" GILERA RUNNER / PIAGGIO NRG, TYPHOON, ZIP/ VESPA ET4, LX , S ,PRIMAVERA, SPRINT -435295-

More information

Quantity required : 3
